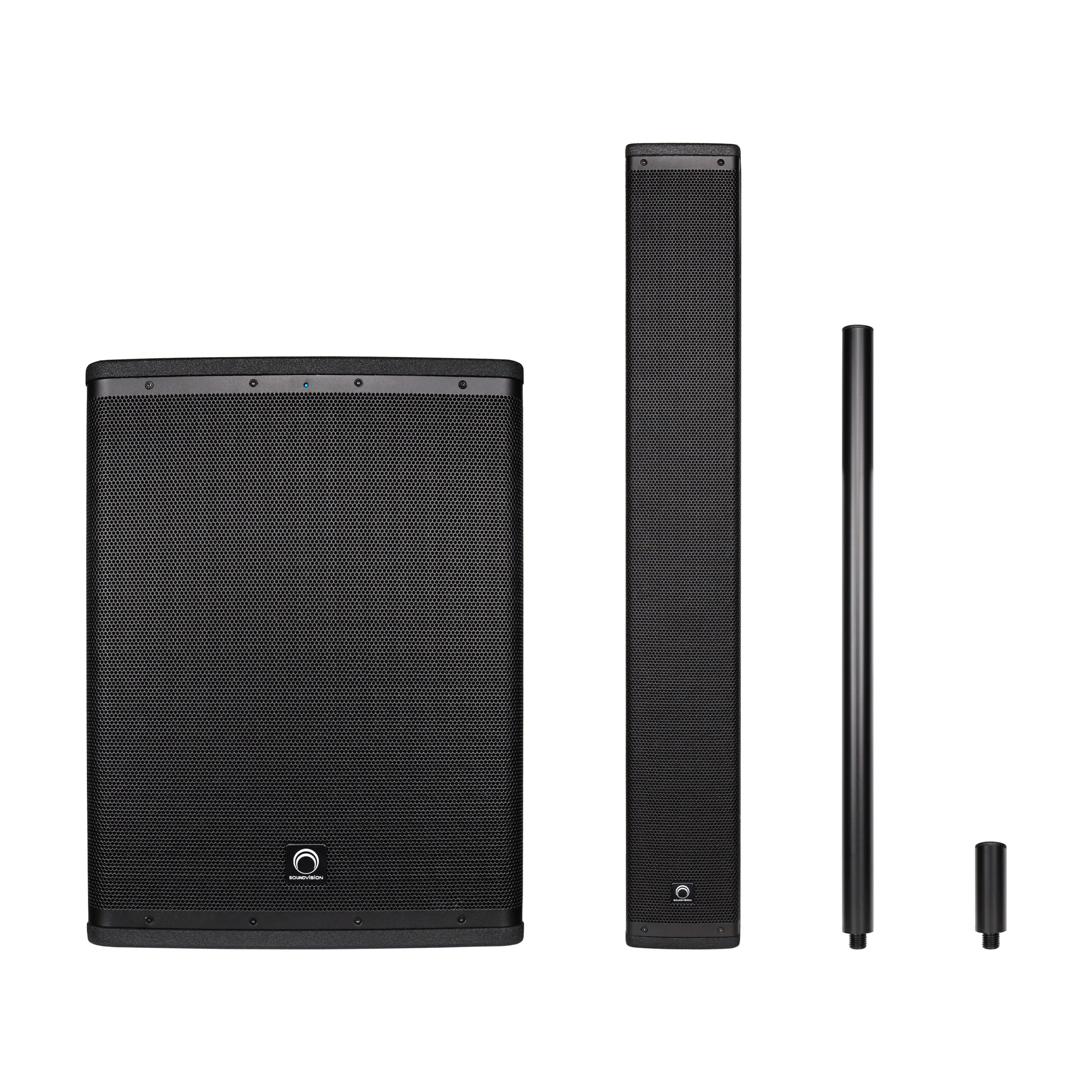

ACS-1500

Active Column Speaker System

ACS-1500 Series Active Column Speaker System (2022 Version) which can cover the usage area from small to large designed for hi-end professional sound performance specifically for frequency response up to 40Hz ~ 18KHz ± 3dB, Power maximum 1800 Watts Amplifier Class D with DSP processor 5 Preset for best performance. And can stream wireless music via Bluetooth support ideal life sound concert, event, shopping mall, meeting room – training, fitness, restaurant, hotel banquet room. This series includes ACS-1500S (Subwoofer), ACS-1500C (Column Speaker)

VERIFICATION OF COMPLIANCE :CE-H36-W67ROSH-H36

FEATURE

  • Subwoofer Component: 15″, 3″ voice coil
  • Satellite Components: 4″ X 8 Full Range Speaker
  • Dispersion Angle (H x V): 80 x 20 Degree.
  • Frequency response: 40Hz ~ 18KHz
  • Max. SPL / (Peak): 125dB/134dB
  • Power RMS: 900W / 1800W (MAX)
  • Built-in Class D Amplifier
  • Built-In DSP Processor Mode: DEFAULT, MUSIC, DANCE, SPEECH, POP
  • Built-in Media player: Wireless stereo audio streaming Bluetooth.
  • Operating voltage AC 220 – 240V, 50/60Hz

SPECIFICATIONS

Model ACS-1500S (Subwoofer) ACS-1500C (Column)
Transducer Subwoofer Components: 15″, 3″ voice coil Satellite Components:  4″ X 8 Full Range Speaker
Frequency Response 40Hz ~ 180Hz ±3dB 110Hz ~ 18kHz ±3dB
Rated Power 600W / 1200W (MAX) 300W / 600W (MAX)
Amplifier Class D
Sensitivity 95dB 1m/1W 96dB 1m/1W
Maximum SPL 125dB/134dB (Peak) 125dB/134dB (PEAK)
Nominal Impedance 4 Ω 4 Ω
Built-in DSP Processor DEFAULT, MUSIC, DANCE, SPEECH, POP
Audio Streaming Wireless Bluetooth Version 5.0 TWS
Dispersion Angle (H x V) 80° X 20°
Connection Line Input: XLR or 1/4” Jack, Line Output: XLR SPEAKON
Operating voltage AC 220~240V, 50/60Hz
Dimensions (H x W x D) 570 x 430 x 520mm 980 x 135 x 135 mm
Net Weight 27kgs. 11 kgs.

DOWNLOAD
