HD-400Ai-12X

Professional PTZ Camera with Ai technology 1080P / HDMI+LAN+USB / 12X optical zoom

FEATURES

  • 1080P Full HD Utilizing a 1/2.8-inch, 2.07 million pixels HD CMOS sensor,delivering superior image quality with a maximum resolution of 1920×1080.

  • Wide-angle + Long Zoom 72.5° wide-angle lens, supporting 12x optical zoom and 16x digital zoom.

  • PoE The wired network supports PoE power supply, the control, power supply, video and audio can be completed with a network cable.

  • Low Light Enhancement The camera ensures clear images in low-light situations by using a CMOS image sensor of 55dB SNR and a 2D & 3D noise reduction to reduce image noise in low-light conditions.

  • H.264 Slice / H.264 SVC The H.264 stream supports Slice and SVC encoding modes, and suitable for high-end USB conference video application

  • Remote Control Support multiple ways of control, like RS232, RS485, Network and USB.

  • AI Presenter Tracking Equipped with in-house-developed ReID technology, the device identifies the speaker’s figure, appearance, and outfit. As the speaker moves within the room, the camera automatically tracks them, ensuring the target remains centered. Even if there are interferences or the speaker exits the frame, the camera swiftly recaptures and tracks them upon reentry.

  • Dual Stream Support dual stream output (YUY2, MJPEG, H.264 each of both) to reduce the host codec pressure.

  • Multiple Interfaces Support 1080P video output through HDMI, USB 3.0 and network simultaneously.

  • Three Power Supply Modes Supports USB 5V power, 12V power adapter, and PoE.

Camera
Signal System1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50
Sensor 1/2.8-inch, CMOS, Effective Pixels: 2.07MP
Scanning Mode Progressive
Digital Zoom16X
Lens12X, f3.5mm~42.3mm, F1.8~F2.8
Video FormatYUY2: Max. 1080P60; H.264 AVC: Max. 1080P60; MJPEG: Max. 1080P60; H.264 SVC(Optional): Max. 1080P60
Frame Rate50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance VAR Auto, Indoor, Outdoor, One Push, Manual,VAR
Backlight Compensation Support
Digital Noise Reduction 2D & 3D Digital Noise Reduction
SNR ≥ 55dB
Horizontal FOV 72.5° ~ 6.9°
Vertical FOV 44.8° ~ 3.9°
Pan Angle ±170°
Tilt Angle -30° ~ +90°
Pan Speed 2.7° ~ 35.7° /s
Tilt Speed 2.7° ~ 31.5° /s
Image Flip & Image Freeze  Support
Preset Position 255
Preset Accuracy0.1°

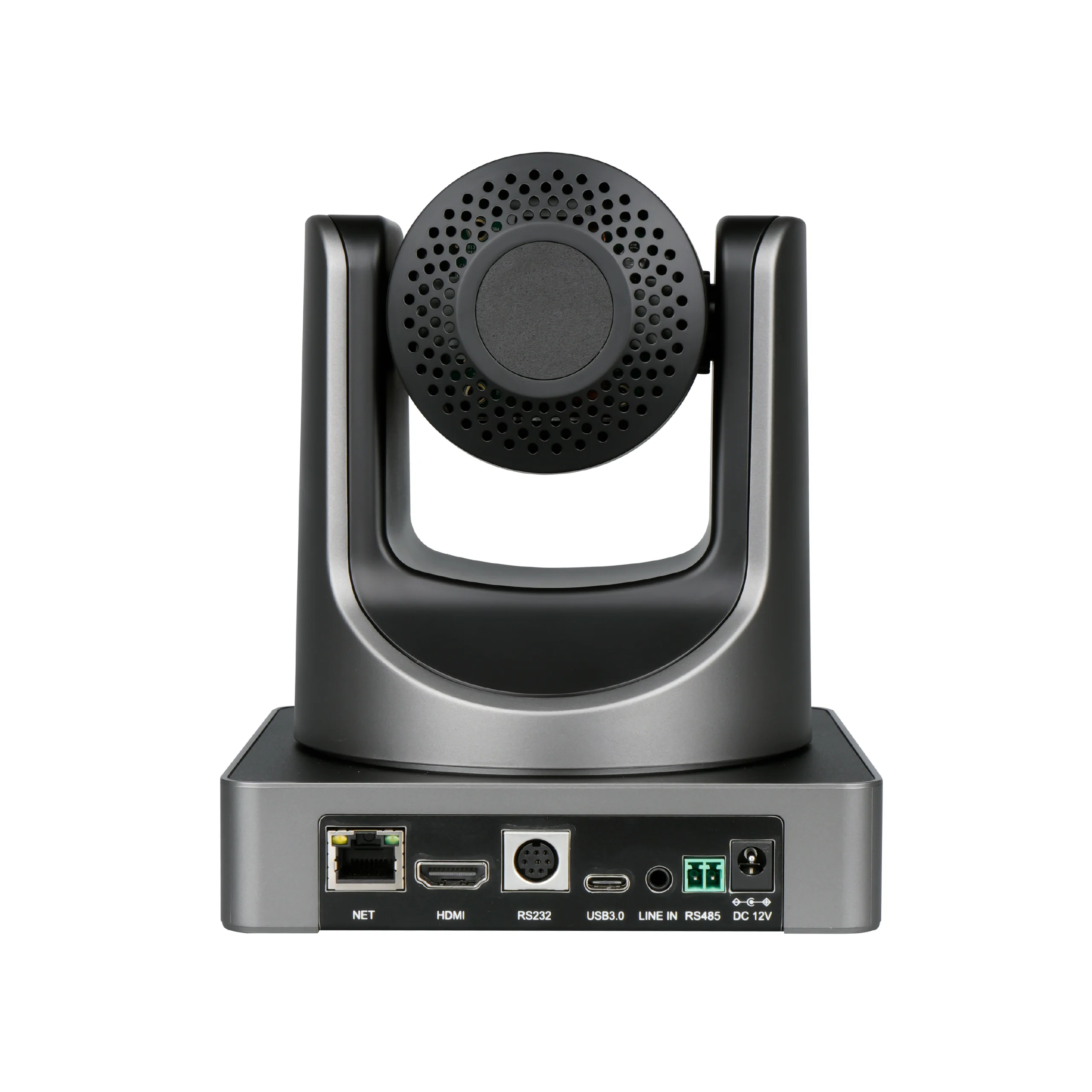

Interfaces
USB Interface 1 x USB3.0,Type-C
HD Output1 x HDMI 1.4b1
Network Interface 1 x RJ45: 10M / 100M adaptive Ethernet
Audio Interface1 x Line In, 3.5mm Jack
Power InterfaceJEITA (DC IN 12V) / USB Type-C DC IN 5V /PoE
Control Interface1 x RS232 In: 8pin Min DIN, Max. Distance: 30m, Protocol: VISCA /Pelco-D / Pelco-P
1 x RS485 In: 2pin phoenix port, Max. Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P
Network Features
Video Compression H.264 / MJPEG
Video Stream First Stream, Second Stream
First Stream Resolution 1920x1080, 1280x720, 1024x576 etc.
Second Stream Resolution 1280x720,1024x576,720x408 etc.
Video Bit Rate 32Kbps ~ 102400Kbps
Bit Rate Control VBR, CBR
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
ProtocolsNDI®|HX2, TCP/IP, HTTP, RTSP, RTMP(S), Onvif, DHCP, Multicast, etc.
USB Features
Operating System SupportedWindows 7 (only supports UVC1.1 features),  Windows 8 and above version, MacOS 10.5 and above version, Linux 2.4.6 and above version,  Android needs to include the version of UVC-related drivers
Color System / CompressionYUY2  H.264 / MJPEG
USB Video Class (UVC) Support
USB Audio UVC 1.1
UVC PTZ Control Support
General Specifications
Input Voltage DC 12V / DC 5V / PoE(802.3af)
Input current 12V 1.0A(Max.) / 5V 1.5
Operating Temperature -10 ~ 40 °C
Storage Temperature -40 ~ 60 °C
Power Consumption 12W
Net Weight 1.41kg
Dimension (W x D x H)144 × 144 × 166.89mm
