6-Inch 2 Way Coaxial Ceiling speaker 70V / 100V 30W

CNl-62 6-inch 2-Way Coaxial ceiling speaker 30Watts is ideal for indoor applications requiring high-quality sound, designed for a wide range of commercial line transformers with multiple for use in 70v / 100V Taps at

  • 70V : 30W/15W/7.5W/3.75W/1.88w, 30W@8Ω
  • 100V : 30W/15W/7.5W/3.75W, 30W@8Ω

CNI-62 Applications designed suitable, such as hotels, restaurants, bars, lounges, training and conference rooms, or shopping centers.


  • 6-inch 2-Way Coaxial ceiling loudspeaker for installation
  • Elegant design ceiling loudspeaker “Borderless”

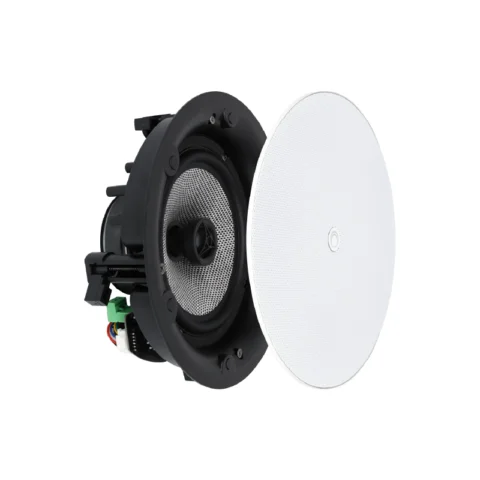

  • Magnetic grille to make installation easier.
  • High-quality sound.
  • Frequency response 70Hz~18KHz
  • Transformer taps 70V, 100V


Speaker type Coxial ceiling loudspeaker, Two-Way
Rated power 30W
Line voltage 70V / 100V
Transformer taps 70V : 30W/15W/7.5W/3.75W/1.88W, 30W@8Ω
100V : 30W/15W/7.5W/3.75W, 30W@8Ω
Frequency response 70Hz ~18kHz (-3dB)
Sensitivity 1W/1m 90 ±3dB
Maximum SPL/1m (calc) 110dB
Coverage Angle Conical 160°
Driver LF Transducer 1 x 6-inch (Woven Kevlar Cone)
Driver HF Transducer 1 x 1-inch (Silk dome)
Nominal impedance (Passive)
Operating temperature -20°C to +55°C
Connections Phoenix connector
Indoor applications Yes
Color White
Cabinet material ABS enclosure

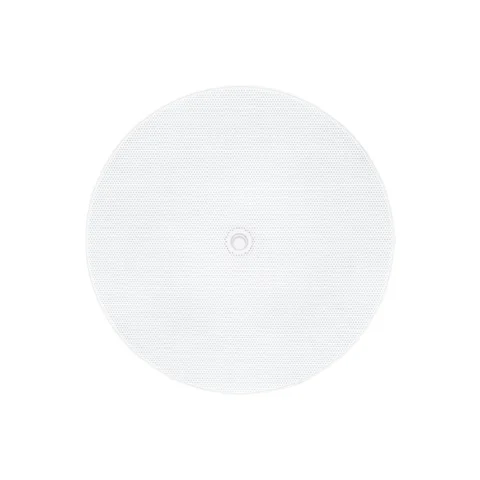

Front grille Metal grille
Dimentions hole for mounting Ø205 mm.
Dimentions Ø235 x H 101 mm. (without bracket)
Weight 1.6 Kg
