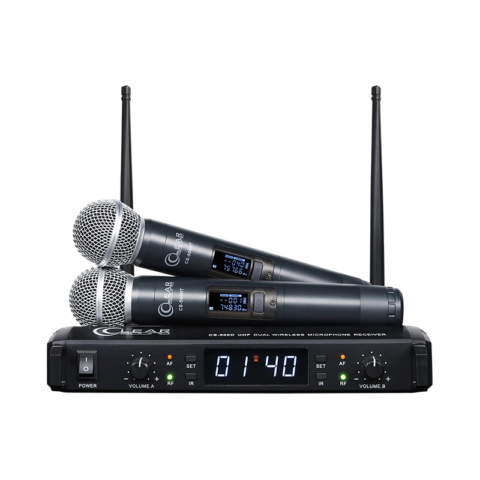

Clearsound CS-500

UHF Dual Handheld Wireless Microphone

  • UHF 748.3 ~ 757.7 MHz Frequency Range. (Brand for Thailand Regulation)
  • Frequency Response 30Hz ~ 20kHz ±2dB
  • Pre-Set 40CH (2*20CH) Selectable Frequencies.
  • The transmitter uses LCD display to indicate frequency and battery level and so on.
  • Up To 50 Meters Line-of-Sight Range.
  • Ideal for large and small stages, Clubs Music Entertainment, Conference, Meeting, Training, Speeches and karaoke Etc.

VERIFICATION OF COMPLIANCE :CE-H36-W67ROSH-H36
CERTIFICATIONS : NBTC | IEC 60950-1

FEATURE

  • UHF 748.3 ~ 757.7 MHz Frequency Range. (Brand for Thailand Regulation)
  • Frequency Response 30Hz ~ 20kHz ±2dB
  • Pre-Set 40CH (2*20CH) Selectable Frequencies.
  • Unique digital pilot technology, no crosstalk disturbance even same frequency.
  • An efficient battery energy design that allows the microphone to be used continuously for longer periods of time.
  • IR Sync Downloading the Frequency from Receiver.
  • The transmitter uses LCD display to indicate frequency and battery level and so on.
  • Single-chip microphone amplifier, DSP-based audio processor with multi-frequency selection function.
  • Up To 50 Meters Line-of-Sight Range.
  • Ideal for large and small stages, Clubs Music Entertainment, Conference, Meeting,
  • Training, Speeches and karaoke Etc.
  • Optional Hand-Held Microphone, Pocket Transmitter, Lavalier and Headset Available.

SPECIFICATIONS

SYSTEM

Carrier Frequency UHF 748.3 ~ 757.7 MHz
Available Channels 40CH (2*20CH)
Bandwidth 9.5 MHz
Dynamic Range 96dB
Total Harmonic Distortion <0.3%
Frequency Response 30Hz ~ 20kHz ±2dB

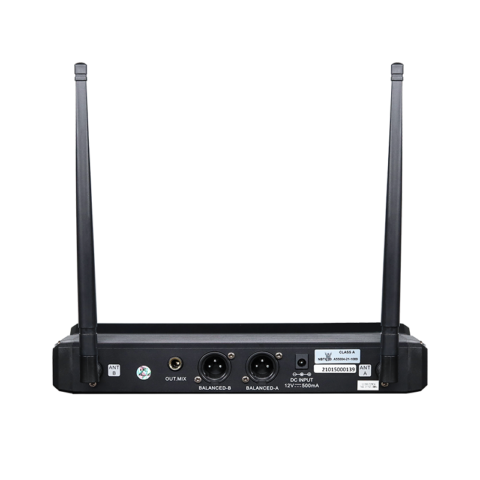

Audio Output Level 1 x 6.3mm, 2 x XLR balance output

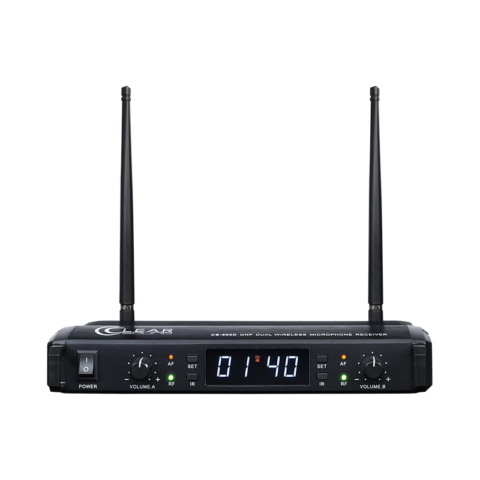

CS-500DR : DUAL RECEIVER

Frequency Response 30Hz ~ 20kHz ±2dB
Power Supply DC 12V 500mA
Consumption Power <3watts
Signal/Noise Ratio 96dB
Receiving Sensitivity -95dBm

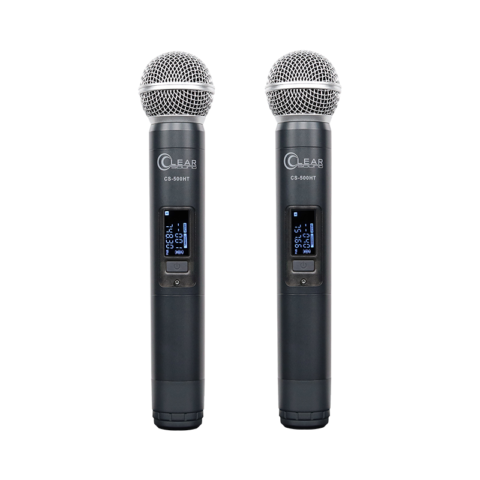

CS-500HT :  HANDHELD TRANSMITTER

Carrier Frequency UHF 748.3 ~ 757.7MHz
Bandwidth 9.5 MHz
Frequency Response 30Hz ~ 20kHz ±2dB
Frequency Switch IR SYNC
Microphone Type Dynamic
Polar Pattern Cardioid Directional
Output Power 10mW
Harmonic Radiation <-50dBc
Battery Voltage 3V (2×1.5V AA Battery)
Battery Life approx. >5 hours

DOWNLOAD

SPECSHEET Clearsound CS-500
