New

ACS-1200S

PROFESSIONAL ACTIVE COLUMN SPEAKER SYSTEM

ACS-1200S SERIES Professional Active Column Speaker System which can cover the usage area from small to large. Designed for hi-end professional sound performance especially for frequency response
up to 40Hz ~ 20KHz -10dB, Power maximum 1600Watts Amplifier Class D Tri-amp with DSP processor 5 Preset for optimum performance. High-quality audio streaming with Bluetooth TWS (True Wireless Stereo). Ideal for live sound concert, event, shopping mall, meeting room-training, fitness, restaurant, hotel banquet room.

This series includes ACS-1200S-S (SUBWOOFER), ACS-1200S-C (COLUMN SPEAKER) X 2

Certifications :CE-H36-W67ROSH-H36 / The ACS-1200S SERIES conforms to standard



FEATURE

  • Subwoofer Component 12″
  • 2 Satellite Components: 4 x 3” Neodymium Full Range Speaker
  • Frequency response: 40Hz~20KHz -10dB
  • Max. SPL / (Peak): 122dB/130dB
  • Power maximum 1600Watts
  • Built-in Amplifier Class D Tri-amp
  • Built-in DSP Processor Mode: 5 modes (Live, Music, Dance, Pop, Speech)
  • Built-in Media player : TWS Bluetooth 5.3(True Wireless Stereo)
  • Dispersion Angle (H x V): 80° x 20°
  • Operating voltage AC 220 – 240V, 50/60Hz

SPECIFICATIONS

MODEL ACS-1200S-S (Subwoofer) ACS-1200S-C (Column) x2
Transducer 12” Subwoofer Components 4 x 3” Neodymium Full Range Speaker
Frequency Response 40Hz~150Hz (-10dB) 150Hz~20KHz (-10dB)
Rated Power 500W / 1000W (MAX) 2 x 150W (RMS) : 300W/600W(MAX)
Amplifier Class D Tri-amp
Sensitivity 91 dB 1m/1W 92 dB 1m/1W
Maximum SPL 122dB / 130dB(Peak) 122dB / 130dB(Peak)
Nominal Impedance 4 Ω 8 Ω
Dispersion Angle ( H x V ) 80°X 20°
Built-in DSP Processor 5 modes (Live, Music, Dance, Pop, Speech)
Audio Streaming Wireless TWS Bluetooth 5.3 (True Wireless Stereo)

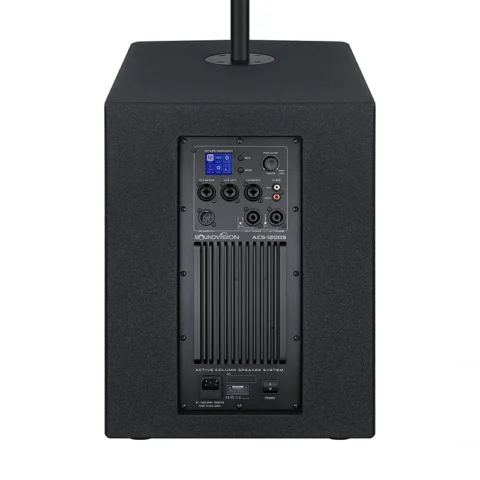

Connection
Line Input 3 x Combo XLR or 1/4″ Jack (Female)
1 x RCA (L/R)
Line Output 1 x XLR (Male)
Speaker Port 2 x Speakon L/R (Output) 1 x Speakon (Input) x 2
General
Operating voltage AC 220 – 240V, 50/60Hz
Fuse T3.15AL 250V
Power consumption (IEC) 300W
Dimensions (H x W x D) 480 x 370 x 520mm 450 x 85 x 105 mm
Net Weight 21.5kgs. 1.4 kgs.

DOWNLOAD
