DCS-1000EX

Power Extended Conference Microphones for DCS-1000 Series / DCS-2000 Series

FEATURE

The Soundvision DCS-1000EX is used to extend the power supply of the speaking unit, and it acts as a relay when the power supply of the controller is insuffcient. Support 1 group of 2-way RJ45 interface and 1-way 8-pin interface input, 2 groups of 4-way RJ45 interface and 2-way unit output of 8-pin interface, can be connected to the speaking unit. Even if the power expander is added, the controller can connect up to 25 microphones in one way (8-pin)

*Support for conference microphone systems : DCS-1000 Series / DCS-2000 Series

SPECIFICATIONS

SPECIFICATIONS DCS-1000EX
Power supply AC 100-240V 50/60Hz
Input connector DIN-8 x 1, RJ45 x 1 (Group)
Output connector DIN-8 x 2, RJ45 x 3 (Group)
Dimensions (W x L x H) 250 x 180 x 43 mm.
Weight 4.5 Kg

COMPATIBLE PRODUCTS

DOWNLOAD

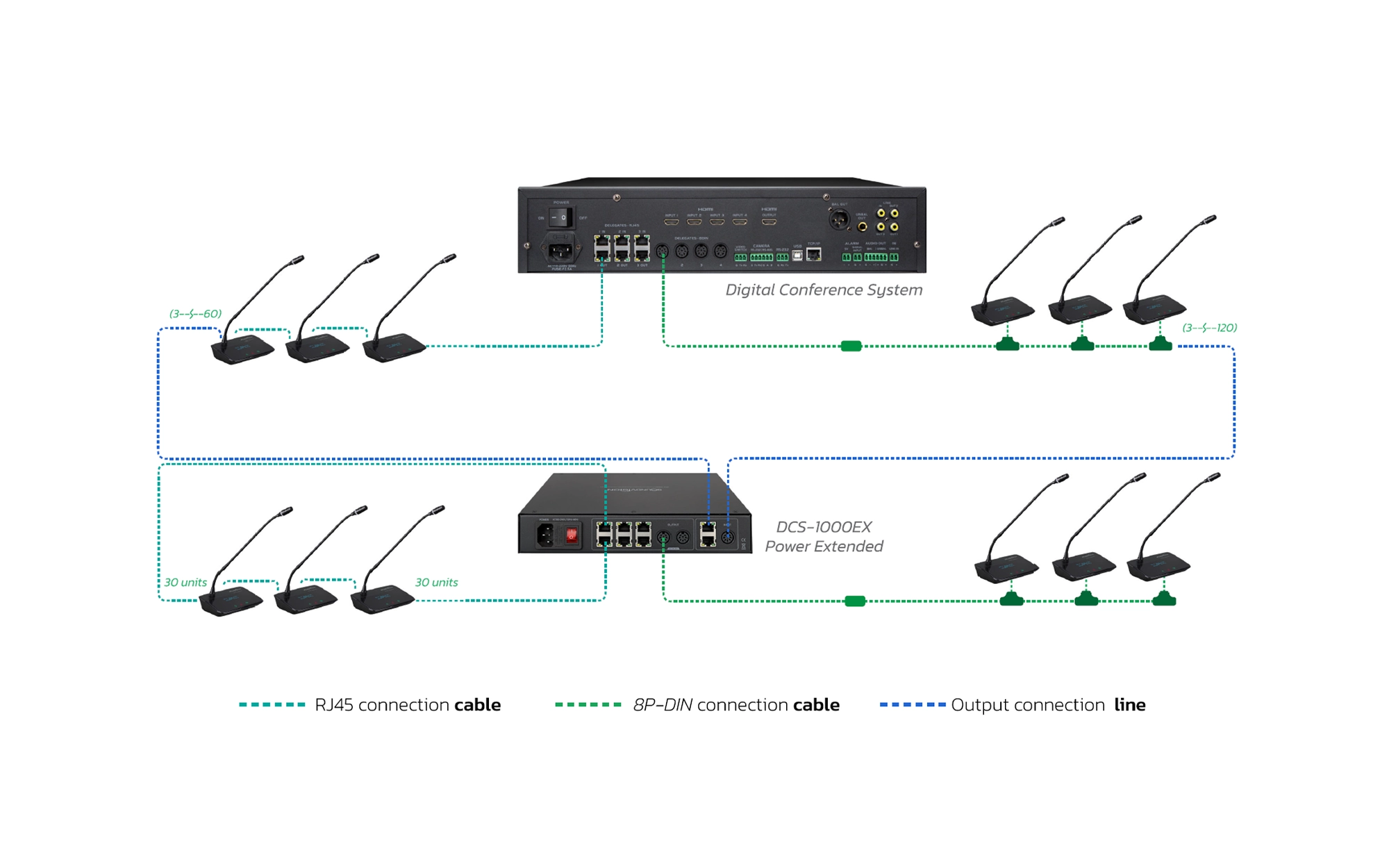

DIAGRAM
