XMFM Series Microphone Cable
- XLR male to XLR female
- Cable MMC-102 OFC conductor Φ6mm
- Shell plating Black plated
- 4 lengths (meter): 5m, 10m, 15m and 20m
Verification of compliance : RoHS
FEATURES
- Unique zinc alloy housing design, increased friction, more in line with humanized concept.
Ergonomic button design. - Cage jack female contact-increased conductivity.
- Male connector, non-locking "window" structure design, making the housing more durable.
- Sleeve has O-shaped ring for waterproofness, sleeve is made of TPE elastomer, providing excellent cable protection.
- Housing available in black or nickel coating.
- Compatible with 4-7mm diameter cable (remove the O-shaped ring of the sleeve when using 5mm cable or below).
Specs
| Product | XMFM Series | |
| Product type | XLR Connectors | |
| Material | ||
| Shell | die-cast zinc alloy | |
| Contact material | brass / tin bronze | |
| Contact plating | silver plated | |
| Sleeve | PA+30% GR/TPE | |
| Electrical & Mechanical | ||
| Contact resistance | <5mΩ | |
| Insulation resistance | ≥ 1GΩ | |
| Dielectric Strength | 1500 V dc | |
| Life time | >5000 times | |

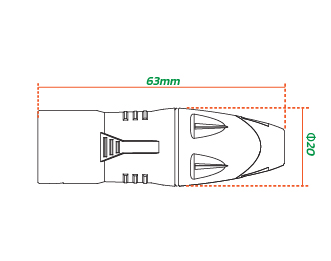

| Dimension | XLR Female | XLR Male |
