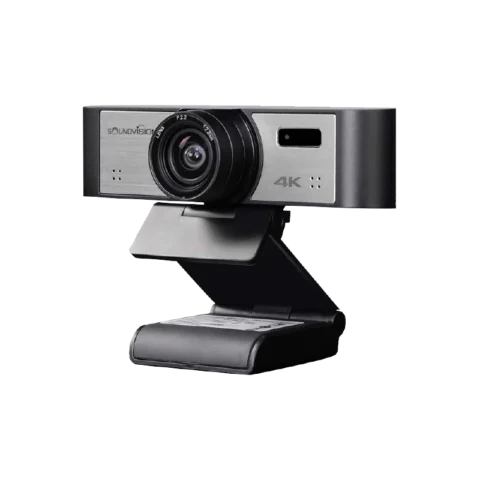

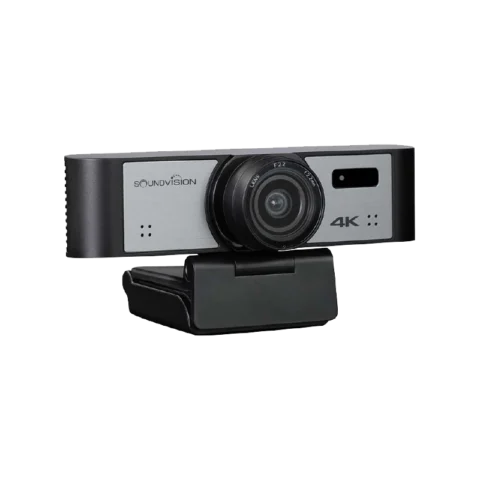

VC-4Kmini
4K Ultra HD USB Auto Framing, Auto Tracking, ePTZ Digital Zoom
SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.
Applications:
Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other
VERIFICATION OF COMPLIANCE :
FEATURES
- Ultra-high definition and ultra-large field
of view Equipped with a new generation of UHD CMOS image sensor, it has more accurate native resolution, richer color information, four times the effect of HD image, and shoots 4K video with full details. With a 110-degree ultra-large Angle and low distortion 4K lens, the panoramic view is unobtrusive. - USB 3.0
Full-function USB 3.0 interface, power supply, video, audio in one, can also support 2 USB video signal source (optional) +1 channel audio source at the same time. - The wave speed forms a microphone array
Built-in beamforming microphone array, unique noise suppression algorithm and automatic gain algorithm, pick up distance up to 6 meters, make your speech perfect presentation. - Ai ability
Multi-layer convolutional neural network design, cutting-edge deep learning algorithms, enabling intelligent features of the camera, high quality analysis data can be accessed through open APIs. - Auto Framing
The advanced deep learning algorithm is adopted to automatically adjust the size of the picture Angle according to the people in the detection field of vision, eliminating the need for manual adjustment of camera operation, bringing you a new intelligent experience. - Ai humanoid tracking
Embedded NNE hardware unit, using deep learning technology, through the extraction of target features, no matter where the face is facing, can achieve smooth humanoid tracking, suitable for automatic speaker tracking and other application scenarios. - Convenient operation
With exquisite infrared remote control and exclusive software, automatic box selection and humanoid tracking can be started with one button, and preset position, EPTZ, image parameters can be set at the same time.
Specs
| Camera | ||
| Sensor | 1/2.7'', CMOS, Effective Pixel: 8.29M | |
| Scanning Mode | Progressive | |
| Lens Mount | M12 | |
| Lens | Focus: f=2.2mm, FOV: 110° | |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual | |
| Camera bracket | bracket with damper | |
| Privacy masking | Support | |
| Digital Noise Reduction | 2D&3D digital noise reduction | |
| Backlight Compensation | Support | |
| Digital zoom | 4X | |
| USB Feature | ||
| Operate System | Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher; macOS™ 10.10 or higher; Google™ Chromebook™ Version 29.0.1547.70 or higher; Linux (support UVC) | |
| Hardware Requirements | 2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or more USB 2.0 port （4K requires USB 3.0） | |
| Color System / Compression | H.264 / MJPEG /YUY2 /NV12 | |
| Video Format | 4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/ 25fps, 640x360p@30fps/25fps etc | |
| USB Video Communication | UVC 1.1 | |
| UAC | Support | |
| UVC ePTZ | Support (ePTZ) | |
| Input / Output Interface | ||
| USB Interface | 1xUSB 3.0: Type C | |
| IR remote | Support | |
| General | ||
| Input Voltage | 5V (USB power supply) | |
| Current Input | 600mA (MAX) | |
| Operating Temperature | -10°C ~ 40°C | |
| Storage Temperature | -40°C ~ 60°C | |
| Power Consumption | 3.0W(MAX) | |
| Dimensions (W x D x H) | 118 * 37.2 * 30.8 mm | |
| Net Weight | 93g | |
| MTBF | 30000h | |
