SVC-3000

Smart Conference Speakerphone Systems with iAA

SVC-3000 is a USB smart conference speakerphone with an embedded architecture design. It adopts the combination mode of main microphone + extension microphone, 10 meters ultra -long distance, 360°omnidirectional pickup, built-in high-fidelity sound cavity, and iAA : intelligence audio algorithms to escort your high-quality meetings.

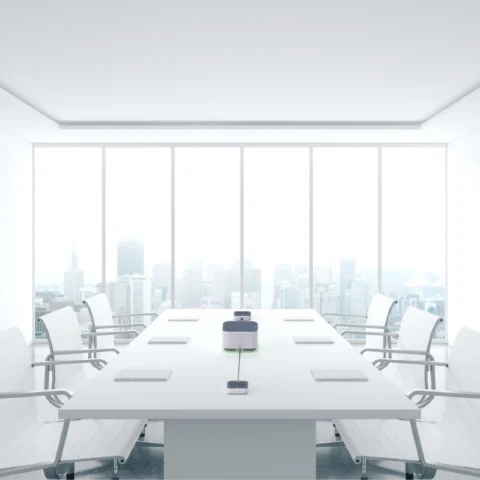

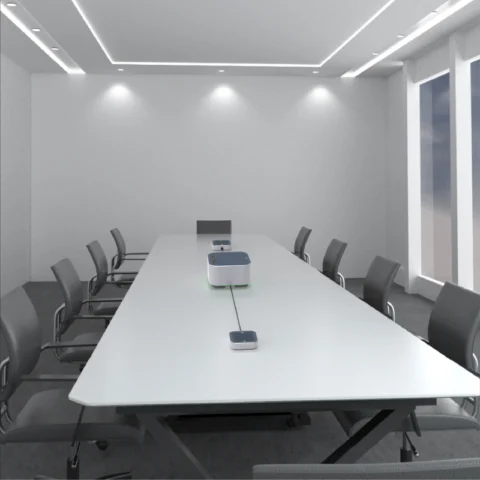

Conference Room Examples

Huddle room

up to 8 seats

Mid-Sized room

up to 16 seats

Large room

up to 20 seats

iAA - Intelligent Audio Algorithm

Equipped with advanced intelligent audio algorithm technology. Experience the exceptional power of Anti-Noise Suppression , Echo Cancellation, Reverberation, Automatic Gain Control, and more. Eliminate any of background noise such as typing keyboard, knocking table, paper flipping noise, room echo in the meeting room.

FEATURE

  • Application scenario The combination mode of the main microphone + extension microphone can be used according to the size of the site environment, to achieve a longer distance pickup and transmission, suitable for small conference room, medium-sized conference room and large conference room etc.
  • Multi-platform compatibility, plug-and-play Compatible with various platforms and mainstream conference software, plug-and-play, free of configuration and debugging, easy to use.
  • Microphone array The main microphone has four built-in digital microphones with high SNR, 360°omnidirectional pickup, fullduplex audio technology, which can select the microphone with the highest sound quality according to the direction and position of the speaker.
  • High-fidelity sound effect It adopts high and low-frequency speaker design, tuned by top sound engineers, making the playing music rich in bass, clear in treble, and clear and natural in playing voice.
  • iAA : Intelligent audio algorithm Built-in intelligent audio algorithms such as anti-noise suppression, acoustic echo cancellation, automatic gain and reverberation, etc., which are in the leading position in the industry, can effectively eliminate background noise, restore high-definition the human voice, and create the ultimate audio-visual experience for professional conferences.
  • Decent and Elegant appearance metallic texture, ring-shaped indicator lights, and a variety of colors, allowing users to easily identify the current working status of the microphone, suitable for various styles of the conference room.

SPECIFICATIONS

Microphone
Microphone type Omnidirectional microphone
Microphone array Built-in 6 Omnidirectional microphones (main mic 4 + extension mic 1 (x2))
Pickup distance 10m pickup distance (dual-extended mic mode)
(Pickup range Recommend: 3M, Max: 10M)
Frequency response 50Hz~16kHz
SNR 65dB
Sensitivity -35dBFS 94dB SPL @1KHz
Interface
Type C interface 1 x Type C interface used to connect the audio input and output of the PC and other equipment.
2 x Type C interface for connecting to the extension mic.
Power supply DC12V/2A, external power supply to power the microphone device.
Buttons Touch button (mute button with light indicator)
Audio
Audio features 32K sampling rate, HD broadband audio, full-duplex.
USB protocol Support UAC2.0
AEC Using audio algorithm to eliminate echo.
ANS Audio algorithm noise reduction, eliminate all kinds of stationary and non-stationary interference noise, maximum noise suppression : 90dB
AGC Intelligent gain adjustment with in 10 meters, clear pickup
Reverberation
suppression
Using audio algorithm to reduce reverberation
Speaker
Speaker Type Full frequency speaker
Power 15w
Frequency Range 50Hz ~ 20kHz
Volume 89dBA @1m
THD <3%
Other specifications
Size (W x L x H) Main Mic : 150 * 150 * 89 mm Extension Mic : 80 * 80 * 25 mm
Weight Main Mic : 1.23 kg Extension Mic : 0.13 kg
Environmental conditions • Temperature: 0°C ~ 40°C (working condition), -40°C ~ 60°C (non-working condition)
• Relative humidity : 45% ~ 90% (working condition), 30% ~ 90% (non-working condition)
Certification CCC , CE , RoHS
