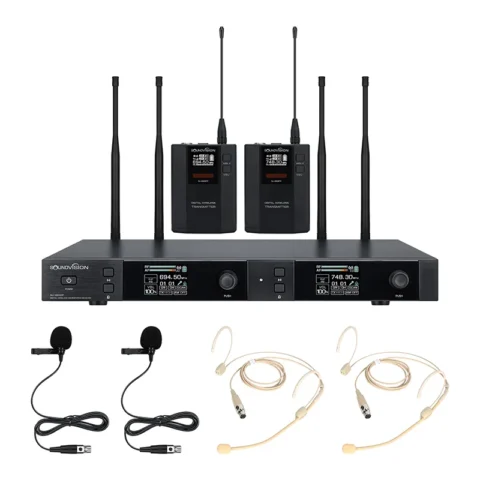

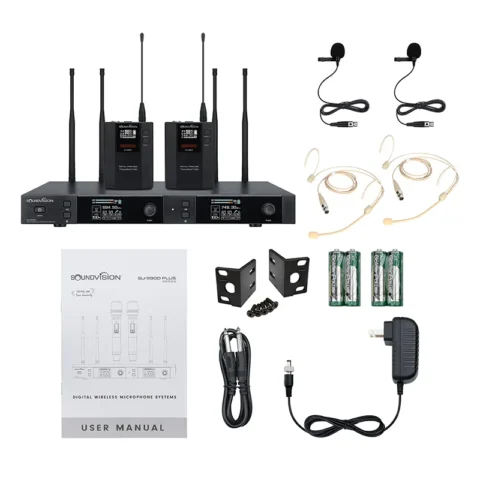

SU-990D/BTP

SU-990BTP is a wireless bodypack transmitter compatible with SU-990D Plus Series Digital Wireless Systems.
• Easy to use quickly syncs with a wireless receiver.
• OLED with easy-to-navigate menu and controls.
• Housing Cast aluminum.

Certifications : / The SU-990D Plus Series conforms to standard

NBTC | ETSI EN 300 422-1 , 301 489-9 , EN 62479 , IEC 62368-1 : 2018

FEATURE

Digital UHF 694.5 ~ 702.7 , 748.3 ~ 757.7 MHz frequency range.
Frequency response 30Hz ~ 20kHz ±2dB
Pre-Set 180CH selectable frequencies (CH-A : 20Group (85Channels), CH-B : 20Group (95Channels)).
Equalizer 9 Presets : 0, ±3db (FLAT / low shelf cut / high shelf cut / high shelf boost / low shelf boost)
True digital diversity system with 4 antennas.
Up To 120 Meters line-of-sight range.
Wireless system adopts Intelligentized cryptographic Hardware.
Easy pairing of transmitters and receivers and IR sync
Ideal for large and small stages, clubs music entertainment, event, conference, meeting, training, presentation speech and Etc.

SPECIFICATIONS

SPECIFICATIONS
SU-990D Plus Series	SU-990D/BTP (Dual Bodypack transmitter)
SYSTEM
Carrier Frequency	UHF 694.5 ~ 702.7 , 748.3 ~ 757.7MHz
Available Channels	180CH CH-A : 20Group (85CH), CH-B : 20Group (95CH)
Bandwidth	17.8MHz
Bandwidth	17.8MHz
Dynamic Range	96dB
Total Harmonic Distortion	<0.1%
Frequency Response	30Hz ~ 20kHz ±2dB
Demodulation Mode	DQPSK
Sampling Rate	48 KHz
Audio Output Level	1 x 6.3mm, 2 x XLR balance output
SU-990DPR : RECEIVER
Frequency Response	30Hz ~ 20kHz ±2dB
Power Supply	DC 12V-18V 1A
Consumption Power	4 Watts
Signal/Noise Ratio	96dB
Receiving Sensitivity	-95dBm
SU-990BTP : BODYPACK TRANSMITTER
Carrier Frequency – Frequency range Group A – Frequency range Group B	UHF 694.5 ~ 702.7 , 748.3 ~ 757.7MHz
	694.5 ~ 702.7 MHz ; 748.3 ~ 757.7 MHz
Available Channels – Channels A : 20Group – Channels B : 20Group	180CH
	85CH 95CH
Bandwidth	17.8 MHz
Frequency Switch	IR SYNC
Output Power	10mW/30mW
Harmonic Radiation	<-50dBc
Battery Voltage	3V (2 x 1.5V AA Battery)
Battery Life (Alkaline Type)	approx 8 hours
LAVALIER (LV-X) \| HEADWORN (HW-X)
Frequency Response	20Hz – 20kHz
Microphone Type	Condenser
Impedance	32Ω ±15%
Sensitivity	-38 ±2dB @1kHz; 1mW
Distortion	1% @ 1KHz
Connect	Mini XLR 4-Pin
