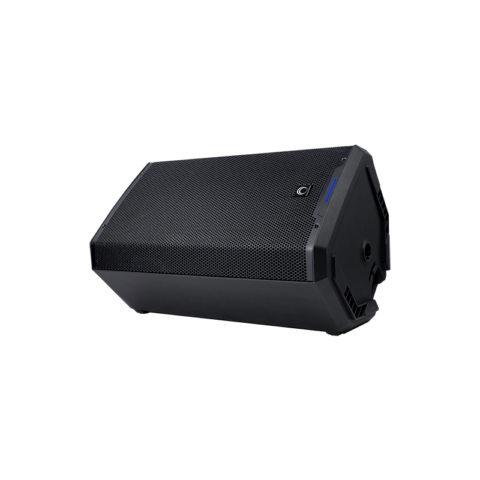

RAPTOR Series High-performance active speakers with powered loudspeakers and subwoofer. Professional PA sound quality, crystal clear sound, and a compact lightweight cabinet characterize ideal for a variety of installed live sound floor-monitoring, portable, fixed music, speech, and even rigged applications the raptor series control via APP allows full system control.
VERIFICATION OF COMPLIANCE :
FEATURES
- RAPTOR Series Crystal Clear Sound.
- Powers MAX 4000W Class D amplification.
- Built-in Media player : TWS Bluetooth 5.1 (True Wireless Stereo)

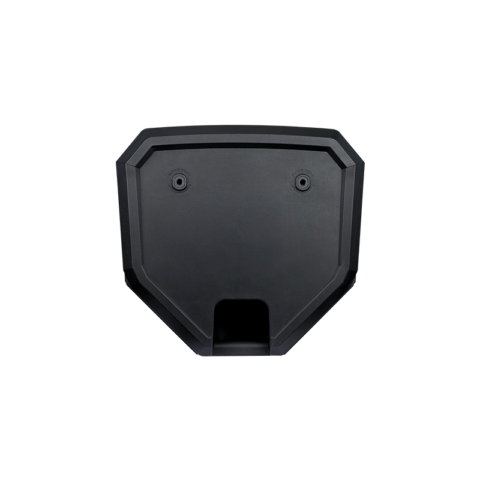

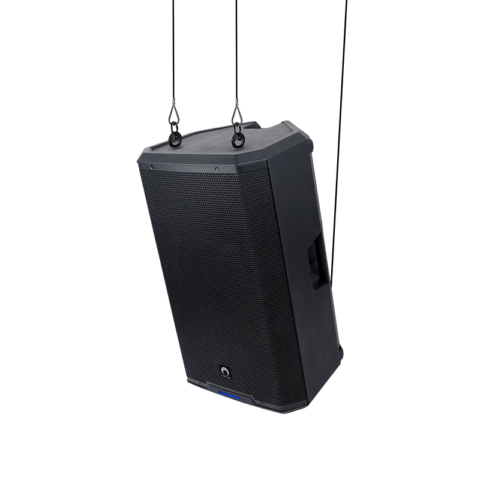

- Supports floor stand and pendant mounting: 35mm pole mount, three M10 suspension points.
- 2.4inch Color LCD screen provides access to comprehensive DSP feature.
- Easily connect to the “Raptor” app on iOS for full wireless control – adjust volume, EQ, DSP mode, and more…
- Birch PLY with polyurea painted finish Anti-corrosion, wear-resistant, waterproof, Good weather resistance and Lightweight.
Specs

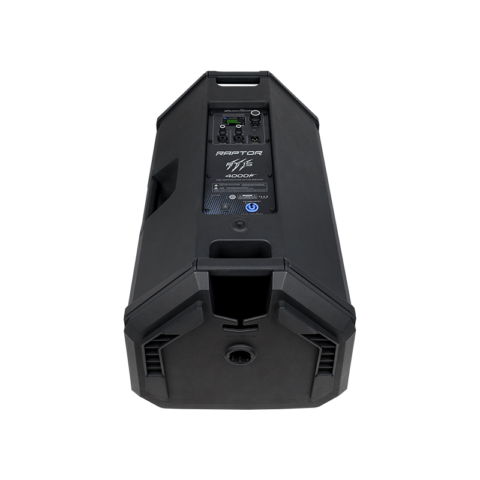

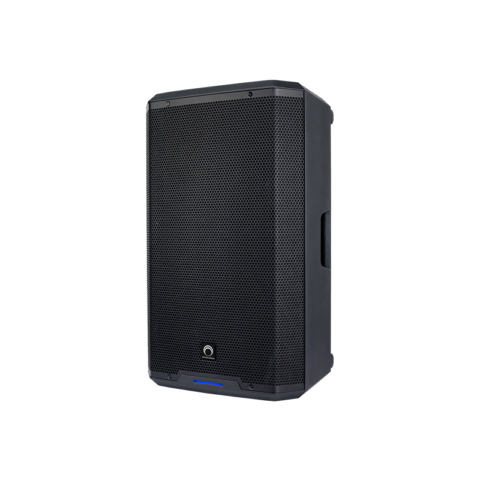

| Model | RT-15 |
| Speaker Type | 2-way Active Speaker |
| Transducer | 15" woofer 2.5" voice coil / |
| 1.35"compress driver | |
| Frequency Response | 45Hz-20kHz(-10dB) |
| Power output (RMS) | 1000W+1000W TOTAL 2000W |
| Power output (MAX) | 4000W (MAX) |
| Amplifier | CLASS D |
| Sensitivity | 130dB 1m/1W |
| Maximum SPL | 131dB (Peak) |
| Nominal Impedance | 2Ω + 4Ω |
| Dispersion Angle ( H x V ) | 90° x 70° |
| LCD | 2.4inch Color LCD screen |
| DSP Processor | 24bit / 48KHz, Connect APP allows full system |
| Media player | TWS 5.1 |

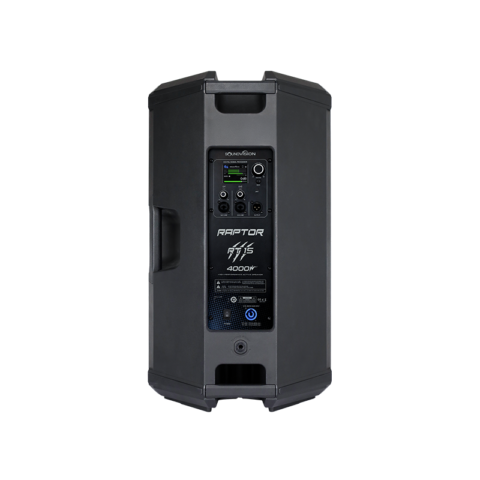

| Connection | |
| Line Input | 2 x Combo XLR or 1/4″ Jack (Female) |
| Line Output | 1 x XLR (Male) |
| General | |
| Cabinet | PP;Painted;Black |

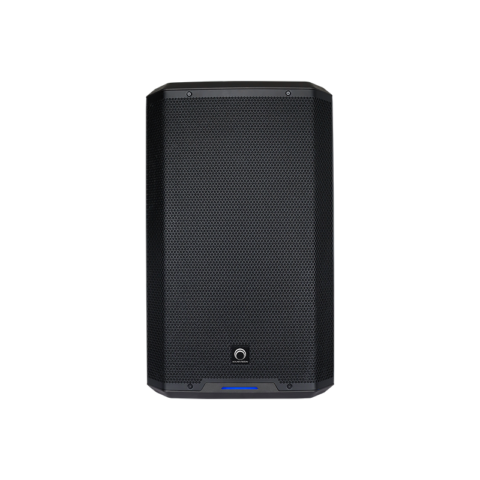

| Grille | Mesh Hexagonal |
| Heat sink | Aluminum, stain removal, aluminum natural color |

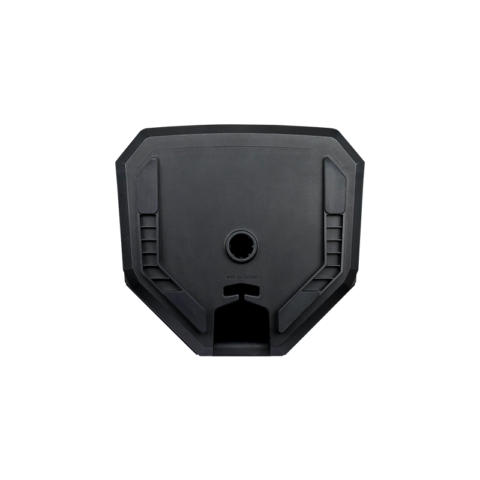

| Pole | 35mm stand pole |
| Operating voltage | 220-240V ~ 50/60Hz 800W MAX |
| 100-120V ~ 50/60Hz 800W MAX | |
| Dimensions (H x W x D) | 713 x 430 x 403 mm |
| Net Weight | 20.7 Kgs |
| Model | RT-12 |
| Speaker Type | 2-way Active Speaker |
| Transducer | 12" woofer 2.5" voice coil |
| / 1.35"compress driver | |
| Frequency Response | 50Hz-20kHz (-10dB) |
| Power output (RMS) | 1000W+1000W TOTAL 2000W |
| Power output (MAX) | 4000W (MAX) |
| Amplifier | CLASS D |
| Sensitivity | 129dB 1m/1W |
| Maximum SPL | 130dB (Peak) |
| Nominal Impedance | 2Ω + 4Ω |
| Dispersion Angle ( H x V ) | 90° x 70° |
| LCD | 2.4inch Color LCD screen |
| DSP Processor | 24bit / 48KHz, Connect APP allows full system |
| Media player | TWS 5.1 |
| Connection | |
| Line Input | 2 x Combo XLR or 1/4″ Jack (Female) |
| Line Output | 1 x XLR (Male) |
| General | |
| Cabinet | PP;Painted;Black |
| Grille | Mesh Hexagonal |
| Heat sink | Aluminum, stain removal, aluminum natural color |
| Pole | 35mm stand pole |
| Operating voltage | 220-240V ~ 50/60Hz 800W MAX |
| 100-120V ~ 50/60Hz 800W MAX | |
| Dimensions (H x W x D) | 628 x 360 x 353 mm |
| Net Weight | 16.9 Kgs |
