PMRC2 Series Audio Cable
- 2 x 6.35mm Jack male mono to 2 x RCA male
- Cable conductor Φ4*8mm black
- Shell plating Black plated
- 2 lengths(meter): 1m, 2m
Verification of compliance : RoHS
FEATURES
Phone Plugs 1/4” (6.35mm.)
- Unique zinc alloy housing design, increased friction, more in line with humanized concept.
- Housing is available in black or nickel coating, gold-plated tip contact, more resistant to oxidation.
Elastic PVC sleeve provides excellent cable protection, available in two colors, which can be used to - distinguish “left" and "right" channels.
- Compatible with cables of diameter up to 7mm.
RCA Connectors
- Unique zinc alloy housing design, increased friction, more in line with humanized concept.
- Housing available in black or nickel coating.
- Contact surface is gold-plated for better oxidation resistance.
- Elastic PVC sleeve provides excellent cable protection, available in two colors, which can be used to distinguish “left" and "right" channels.
- Compatible with cables of diameter up to 6mm.
Specs
| Product | PMRC2 Series | |
| Product type | Phone Plugs 1/4” (6.35mm.) | RCA Connectors |
| Material | ||
| Shell | die-cast zinc alloy | die-cast zinc alloy |
| Contact material | brass | brass |
| Contact plating | nickel or gold plated | gold-plated |
| Sleeve | flexible PVC | flexible PVC |
| Electrical & Mechanical | ||
| Contact resistance | according to matching connector | ≤ 0.015Ω |
| Insulation resistance | ≥ 1GΩ | >100MΩ |
| Dielectric Strength | 500V dc | 500V dc |
| Life time | >1000 times | >1000 time |

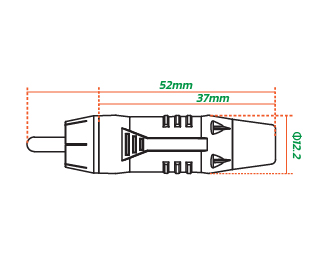

| Dimension |  |  |
