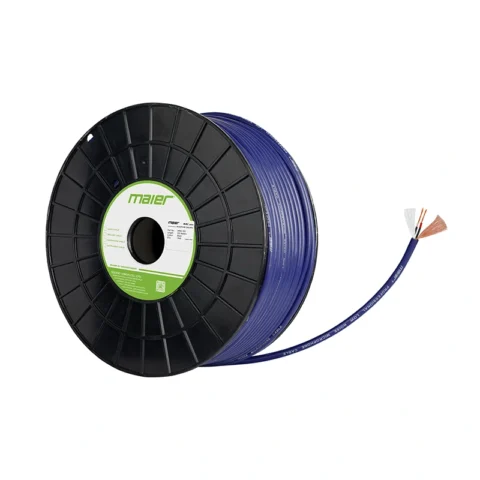

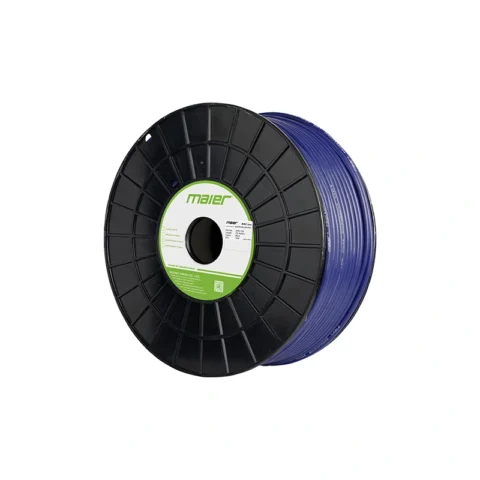

MMC-102
High quality microphone Cable
MMC Series High-quality microphone cable
- MMC-102 2×0.23mm²
Verification of compliance : RoHS
FEATURES
- Fine stranded wire for high-quality signal transmission.
- Very robust,with thick soft PVC jacket.
- Wonderful shielding 85% provided by dense copper braided shielding and semiconductor shieling.
- High flexible, Well-suited for use with cable drums.
Specs
| MODEL | MMC-102 |
| Type | Φ0.12 BC*20 |
| Inner conductor | 0.23 mm² |
| Inner conductor section | LDPE Φ1.3 |
| Conductor insulation | Red/White |
| Insulation colour | Yes |
| Conductor twisting | Conductive PVC / Φ0.12Cu*64 spiral |
| Shielding | Flexible PVC |
| Outer jacket | Φ6.0 mm |
| Outer dimensions | min. -20°C |
| Temperature range | max. 70°C |
| Packaging | 100 m roll |
| Lead resistance - 100m | ≤9.1 Ω |
| Cable crosstalk - 100m | Min 73.3dB |
| MODEL | MMC-101 |
| Type | Microphone Cable |
| Inner conductor | Φ0.12 BC*20 |
| Inner conductor section | 0.23 mm² |
| Conductor insulation | HDPE Φ1.4 |
| Insulation colour | Red/White |
| Conductor twisting | Yes |
| Shielding | Φ0.12Cu*64 spiral |
| Outer jacket | Flexible PVC |
| Outer dimensions | Φ6.0 mm |
| Temperature range | Min. -20°C / Max. 70°C |
| Packaging | 100 Meter/Roll |
| Lead resistance - 100m | ≤9.1 Ω |
| Cable crosstalk - 100m | Min 73.3dB |
