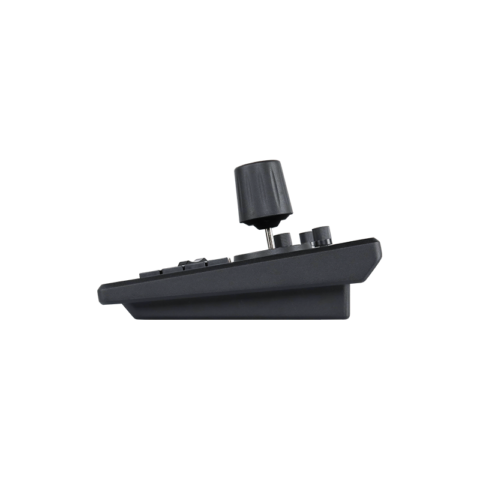

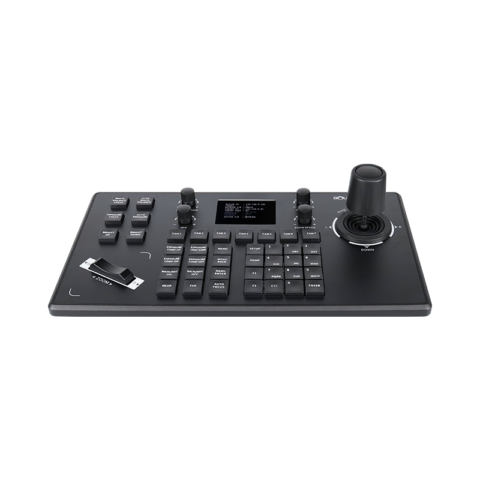

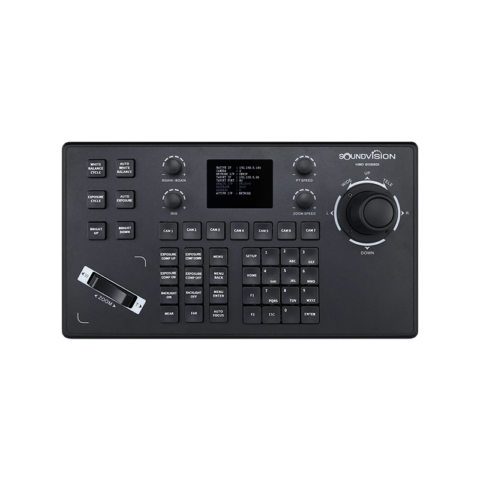

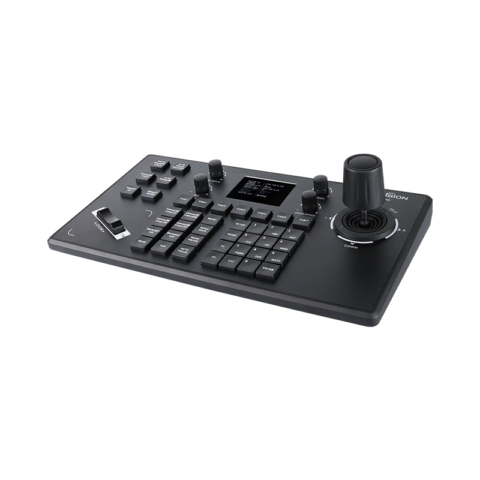

SOUNDVISION KBD 2022Di a network (IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols supporting VISCA, ONVIF protocols, and VISCA is fully compatible and extensible. Built-in web server makes the configuration interface simple and clear, easy to operate. It only takes a few steps to achieve perfect control of the video conferencing camera. The appearance is simple and beautiful. Adopt the industrial-grade LCD panel with an excellent display and the characters are delicate and clear.
FEATURES
• Support VISCA, VISCA OVER IP, ONVIF, PELCO-P, PELCO-D protocols, and VISCA is fully compatible.
• Support network and analog two control modes, have independent IP addresses in network mode.
• RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
• Support software function control of conference cameras.
• Adopt high-quality variable speed 4D joystick control, and comfortable operations. Rotate the joystick and control the conference camera omnidirectional movements.
• Adopt addable seesaw to adjust the camera focus, the operation is convenient and powerful.
• Support IE browser to add camera configuration parameters.
• Support up to 7 cameras shortcut control buttons for quick and easy operation.
• Support standard POE power supply.
• The video conference keyboard is made of sheet metal and scratch-resistant PC matte film, and the aluminum die-casting surface design with a powder-bottomed bottom shell.
| SPECIFICATIONS | |

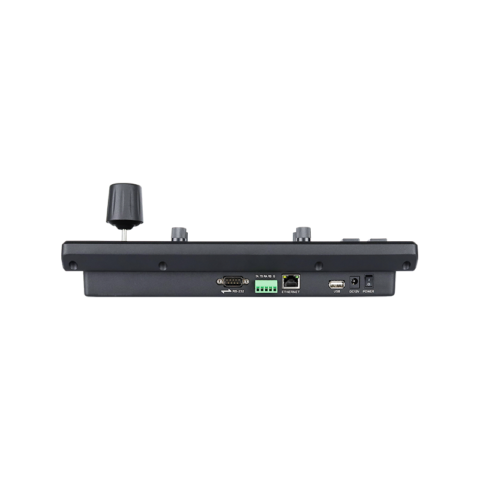

| Port | Network: RJ45. Serial Port: RS422, RS232 / USB interface |
| Protocol | Network: ONVIF, VISCA OVER IP Serial Port: VISCA, PELCO-D, PELCO-P |
| Communication BPS | 9600bps |
| Interface | RS422, RS232, RJ45 |
| Joystick | 4D ( up, down, left, right, zoom+, zoom- ) |
| Display | TFT LCD (320*240) |
| Prompt tone | ON/OFF |
| Power Supply | DC12V - 2A |
| Power Consumption | ≤5W |
| Working Temperature | -10°C ~ 55°C |
| Storage Temperature | -10°C ~ 60°C |
| Dimensions (WxLxH) | 321.6 x 179.2 x 105.7 mm |
| Weight | 1290g |
| Upgrade | WEB Upgrading |
| SPECIFICATIONS | |
| Port | Network: RJ45. Serial Port: RS422, RS232 |
| Interface | RS422, RS232, RJ45 |
| Decoding | H.265, H.264 |
| Display | TFT LCD (5-inch) |
| Resolution | 1920 x 1080@30fps |
| Joystick | 4D ( up, down, left, right, zoom+, zoom- ) |
| Prompt tone | ON/OFF |
| Power Supply | DC12V - 2A ±10% |
| Power Consumption | ≤5W |
| Working Temperature | -10°C ~ 55°C |
| Storage Temperature | -10°C ~ 60°C |
| Dimensions (WxLxH) | 340 x 268 x 140mm |
| Weight | 900g |
| Upgrade | WEB Upgrading |
| SPECIFICATIONS | |
| Port | Network: RJ45. Serial Port: RS485, RS232, 2 x HDMI 1.4, USB2.0 |
| Protocol | ONVIF, ONVIF2.4, VISCA OVER IP |
| Interface | RS485, RS232, RJ45 |
| Joystick | 4D ( up, down, left, right, zoom+, zoom- ) |
| Display | IPS 10.1 inch touchscreen, Resolution 1280 x 800 Support HDMI 4K@30fps |
| Decoding | H.264/H.265, H.264 1 x 1080p@60fps, H.264 4 x 720p@30fps, H.265 1 x 4k@30fps |
| Prompt tone | ON/OFF |
| Power Supply | DC12V - 2A ±10% |
| Power Consumption | ≤5W |
| Standby current | <100mA |
| Mean time between failures | >30000 |
| Working Temperature | -10°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Dimensions (WxLxH) | 390 x 240 x 130 mm |
| Weight | 1580g |
