New

Flexy M – 15SA

Active vented subwoofer

FLEXY M is powerful sound Line Array Speaker System, this series adapting to different preferences and scale of applications. With high performance offers various combinations and choices always here with a proper solution that meets your need. This FLEXY M Line Array Speaker System the growing need for scalable small and medium-format professional sound solutions for live sound, touring, rental companies, fixed installations and musicians seeking various combinations of performance and portability.

Flexible, Scalable and Variable coverage

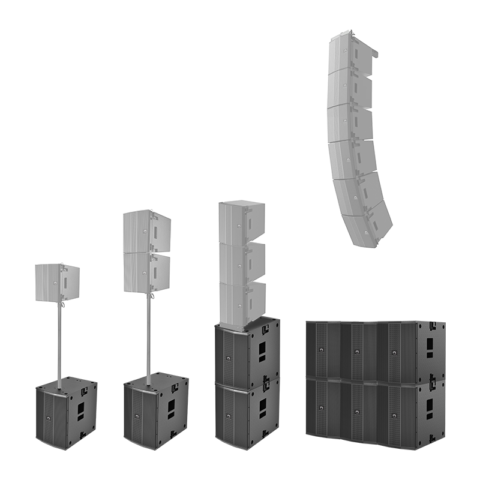

The FLEXY M Series can scale to accommodate any mid or large size application. FLEXY M can be configured in the following ways:

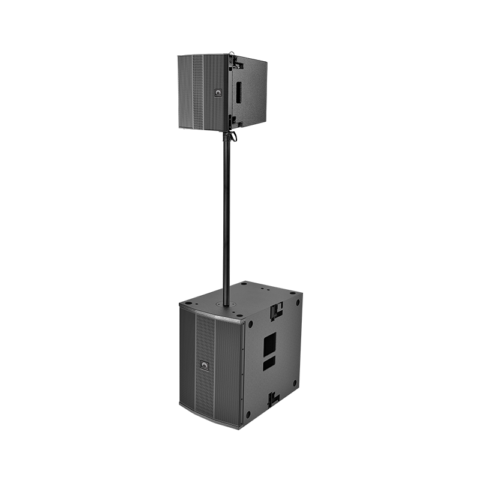

  • One subwoofer and one tops, pole mounted or stacked

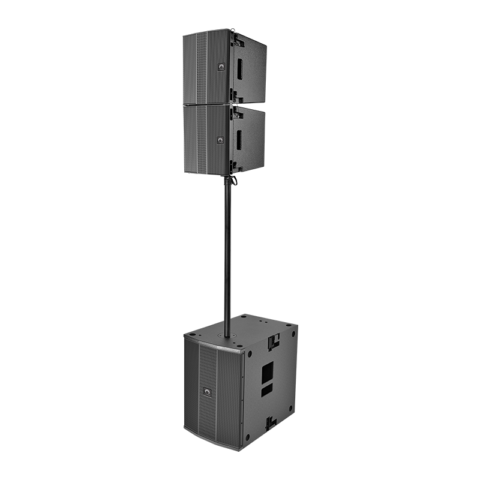

  • One subwoofer and two tops, pole mounted or stacked

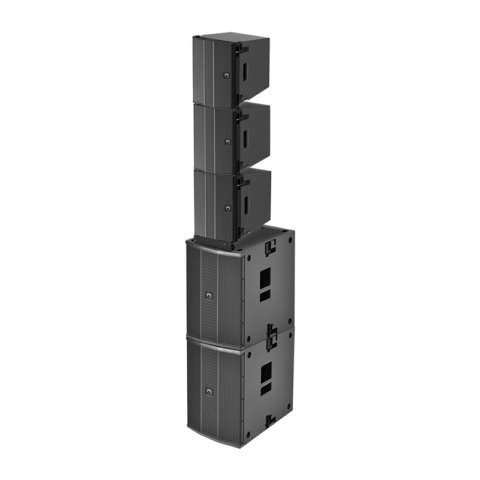

  • Two subwoofer and three tops, stacked

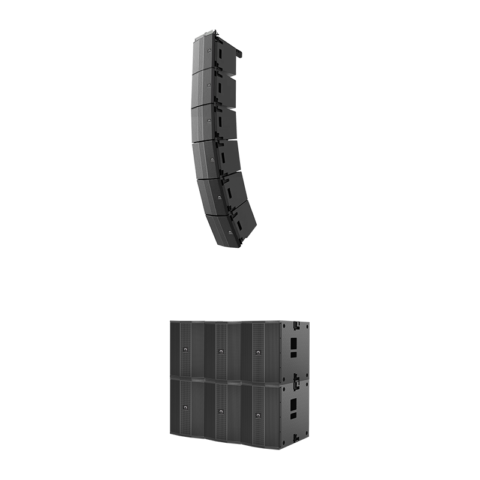

  • Two ground-stacked subwoofers with six tops flown

Certifications :CE-H36-W67ROSH-H36 / The FLEXY M Series conforms to standard

FEATURE

  • Compact, Clear, and Louder Line Array Speaker System.
  • 15″ Active vented subwoofer
  • Amplifier CLASS-D / Power output 2000Watts
  • Frequency response : 40 ~ 120Hz
  • Maximum SPL. : 134 dB
  • LF Driver : 15″ subwoofer, 3″ Voice Coil

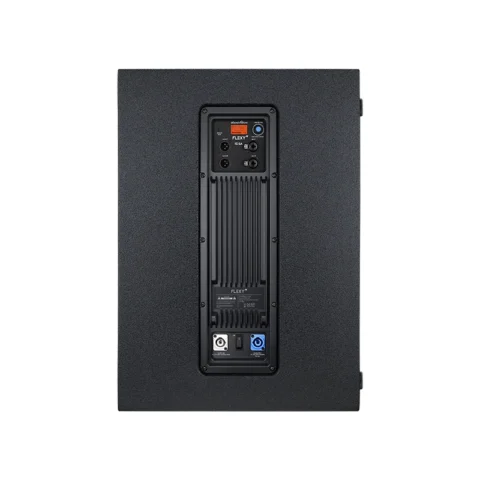

  • I/O Connectors : Input : 2 x XLR | Output : 2 x XLR link
  • Power I/O : POWERCON
  • Built-in Pin lock 4 point rigging system
  • Built-in DSP includes
    • LCD with multiple DSP
    • Switching power design
    • LED power / signal / clip indicator
    • Phase switchable (0/180)
    • Delay value adjust, 100ms max

SPECIFICATIONS

FLEXY M 62LA ACTIVE LINE ARRAY 15SA ACTIVE SUBWOOFER
Type 2 way active vented design Active vented subwoofer
Frequency Response 65Hz ~ 20KHz 40Hz ~ 120Hz
Maximum SPL 132dB 134dB
Crossover Point 630Hz Selectable 100Hz, 120Hz
Sensitivity input Selectable +3dBV, 0dBV, -3dBV, -6dBV –
Driver LF 6 x 4.2″woofer + 6 x 2″ full range line array 15″ subwoofer, 3″ Voice Coil
Dispersion Angle (H x V) H 120°x V10° –
Signal Connectors (I/O) Input : XLR | Output : XLR link Input : 2 x XLR | Output : 2 x XLR link
Power I/O POWERCON POWERCON
Volume – Volume control
Amplifier Bi-Amp Class-D Class-D
Power output (RMS) LF: 500W + HF: 500W TOTAL 1000W 1000W
Power output (MAX) 2000W 2000W
Feature functions DSP Setup LCD with multiple DSP
Switching power design Switching power design
LED power / signal / clip indicator LED power / signal / clip indicator
FIR filter design, flat phase curve Phase switchable (0/180)
Delay value adjust, 100ms max
Cabinet Birch Plywood with polyurea painted finish Birch Plywood with polyurea painted finish
Grille 1.0mm steel 1.5mm steel
Pole support Double holes 35mm Steel bottom holder M20 screw pole
Rigging and handling Inter-enclosure angles 0,1,2,3,4,6,8,10° Inter-enclosure angles 0° (Stacking)
Built-in Pin Lock support 5 points 4 points
Flybar support Flybar+rope –
Fuse T4AL 250V T6.35AL 250V
Operating voltage AC 220V-240V, ~50/60Hz AC 220V-240V, ~50/60Hz
Dimensions (H x W x D) 367 x 315 x 402mm 623 x 443 x 660mm
Packed Dimensions (H x W x D) 485 x 430 x 495mm 775 x 575 x 800mm
Net Weight 13.6kgs 37.5kgs
Gross Weight 18kgs/1pc 44kg/1pc
