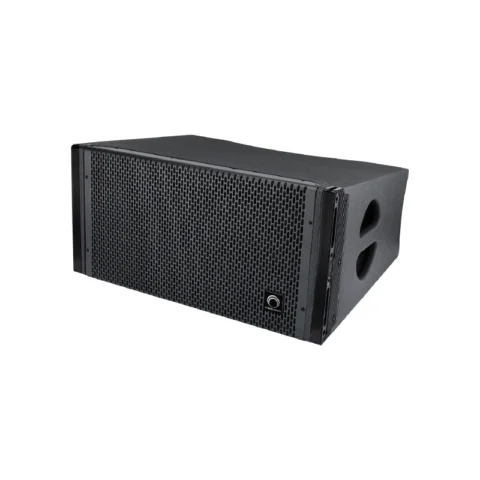

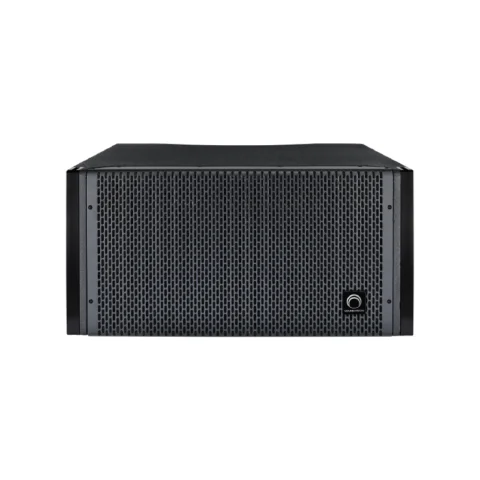

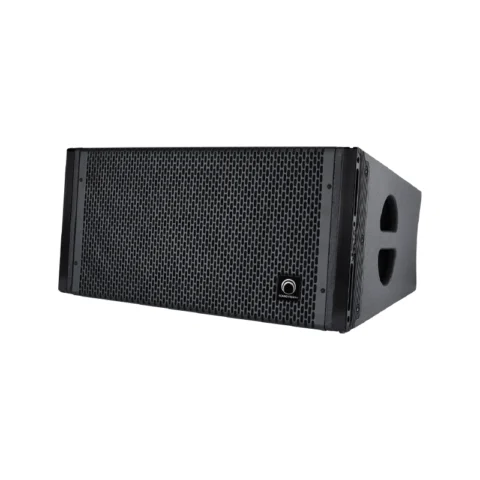

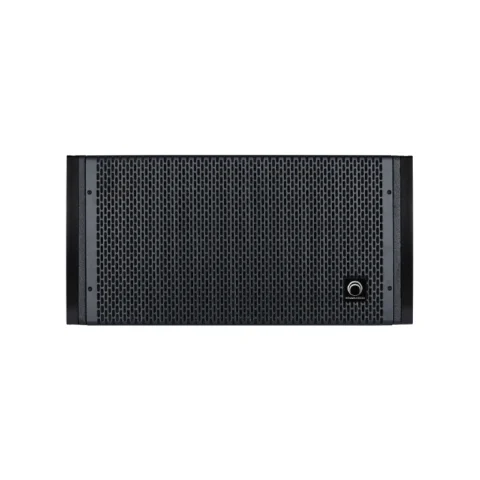

ESi10LA is powerful sound Line Array Speaker System, this series adapting to different preferences and scale of applications. With high performance offers various combinations and choices always herewith a proper solution that meets your need. The true modular design provides ESi Line Array series amazing flexibilities to be combined, split and extended freely
ESi10LA Application
Rigging System
Fixed Installation
Ground Stacked
Main PA
Live Sound & Tour
Certifications :
FEATURES
- 10-inch Active Line Array Speaker
- LF Driver: 10″ Woofer, 3″ voice coil, Neodymium
- HF Driver: 1.4″ exit, 3″ voice coil, Titanium
- Coverage angle (H x V) 100° x 15°
- Frequency response ±3dB: 65Hz ～ 20KHz
- Frequency response -10dB: 50Hz ～ 18KHz
- Max. SPL / (Peak): 122dB / 138dB
- Max. Powered: 350W / 700W
- Built-in Amplifier Class D
- Built-in DSP processor.
- Functions: DSP Setup, Low cut,
- USB service
- Connection:
- Input connectors: XLR 20KΩ balanced
- Output connectors: XLR Balanced
- Cooling system: Passive radiator
- Enclosure: 15mm&18mm
- Multilayer plywood
- Coating: Water resistant black paint
- Operating voltage AC 220 ～ 240V, 50/60Hz
Specs
| MODEL | ESi10LA |
| Transducer | LF Driver: 10″ Woofer, 3″ voice coil, Neodymium | HF Driver: 1.4″ exit, 3″ voice coil, Titanium |
| Frequency Response | ±3dB: 65Hz ～ 20KHz |
| -10dB: 50Hz ～ 18KHz | |
| Max. Powered | 350W / 700W |
| Amplifier | Class D |
| Sensitivity | 98dB 1m/1W |
| Max. SPL / (Peak) | 122dB/138dB |
| Nominal Impedance | 8 OHM |
| Coverage angle (H x V) | 100° x 15° |
| Built-in DSP Processor | Functions: DSP Setup, Low cut, USB service |
| Connection | Input connectors: XLR 20KΩ balanced | Output connectors: XLR Balanced” |
| Operating voltage | AC 220 ～ 240V, 50/60Hz |
| Dimensions (W x D x H) | 580 x 454 x 284mm |
| Net Weight | 25.5 Kg |
| MODEL | ESi18SA |
| Transducer | LF Driver: 18″ Woofer, 4″ voice coil |
| Frequency Response | ±3dB: 50Hz ～ 100Hz |
| -10dB: 45Hz ～ 100Hz | |
| Max. Powered | 1000W / 1800W |
| Amplifier | Class D |
| Sensitivity | 96dB 1m/1W |
| Max. SPL / (Peak) | 129dB / 136dB |
| Nominal Impedance | 8 OHM |
| Coverage angle (H x V) | |
| Built-in DSP Processor | Functions: DSP Setup, Low cut, USB service |
| Connection | Input connectors: XLR 20KΩ balanced | Output connectors: XLR Balanced |
| Operating voltage | AC 220 ～ 240V, 50/60Hz |
| Dimensions (W x D x H) | 580 x 580 x 510mm |
| Net Weight | 41 Kg |
