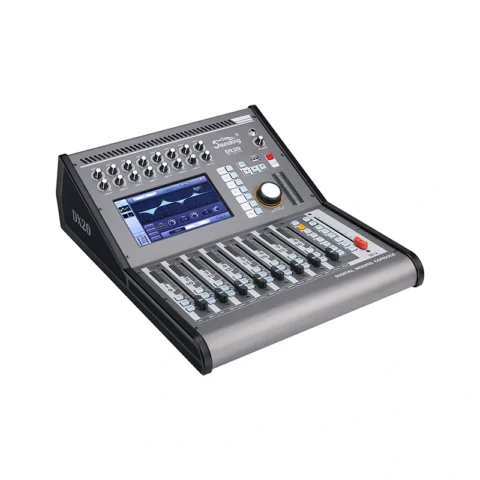

DX20
20-CHANNEL DIGITAL MIXER
Key Features :
- 20 Hz to 20k Hz Frequency Response
- 6 DCA Groups
- 2 Mute Groups
- DSP with 8 Effects
- 4 User-defined Keys
- 7″ HD Touch Screen
- 2 User-defined Layers
- Linking Input Channels
- Support RS485 Central Control Interface
- Signal Routing over Input and Output Channels
- Remote Control by Any Device with HTML5-supporting Browsers
- Optional Extension Card Slot
- 16 x 16 USB-B Extension Audio Interface for Digital Playback and Recording
- 16 x 16 LAN Extension Network Interface for Long Distance Transport and Routing
Product Description
DX20 digital mixer is a fully functional compact digital mixer that SOUNDKING has entered the digital mixer market.
A new concept that combines modern digital mixer with traditional mixer operation: small size, simple operation interface, professional mixing effect.

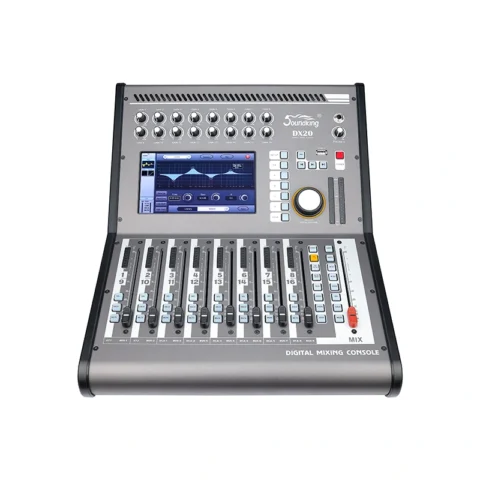

A 7″ Android-powered HD touch screen for Wi-Fi wireless control and nine 100mm electric faders are used to adjust parameters for intuitive operation.
Providing users with multiple configuration options for basic version or multi-track recording version or network transmission version, the mixer is installed with 2 USB interfaces for playback, recording, scene storage and iPad remote control access.
DX20 has extension card slot: 16×16 USB-B audio interface or 16×16 network transmission LAN network interface(Optional), which is not only enable to play an excellent role in professional performance, but fully easy for the inexperienced individual users to provide a strong effect.
The machine combines the advantages of high-end hardware, touch sliding and iPad flat panel remote control, adopting 4th generation 40-bit SHARC floating-point processor, 24bit/48kHz AD/DA conversion with 8 built-in effectors: reverb, delay, modulation and GEQ (20 input channels), 16 buses contains 8 user-defined analog and digital output ports.
Video
Model | DX 20 |
| Number of Interface Input | 20 |
| DSP | 4th DSP |
| Multitrack-Recording | YES |
| USB Play | YES |
| Remote Control | YES |
| Number of Mono Ins | 16 |

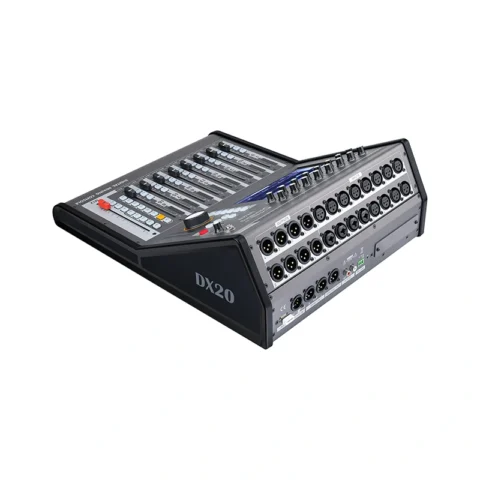

| Local Mic In | XLR x12 + Combo x4 |
| Local Output | XLR (x10) |
| Number of Stereo AES/EBU Connectors | 1 |
| Phantom Power | 48 V |
| Height in mm | 147.3 mm |
| Depth in mm: | 470.3 mm |
Type: | 20-CHANNEL DIGITAL MIXER |
| BUS: | 8 |
| Gain: | YES |
| USB/SD Direct Recording: | YES |
| Bluetooth Play: | NO |
| Touch Screen: | YES |
| Number of Stereo Ins: | 2 |
| Local Line In: | TRS (x4) |
| Number of Stereo S/PDIF Connectors: | 1 |
| Number of Headphone Connectors: | 1 |
| 19″ Rackmount: | YES |
| Width in mm: | 353 mm |
| Weight in kg: | 6.5 kg |
| Model | DM 20M |
| Number of Interface Input | 20 |
| DSP | YES |
| Multitrack-Recording | NO |
| USB Play | YES |
| Remote Control | YES |
| Number of Mono Ins | 12 |
| Local Mic In | XLR x8 + Combo x4 |
| Local Output | XLR (x8) |
| Number of Stereo AES/EBU Connectors | 1 |
| Phantom Power | 48V |
| Height in mm | 100 mm |
| Depth in mm | 445 mm |
Type | DIGITAL MIXER |
| BUS | 8 |
| Gain | YES |
| USB/SD Direct Recording | YES |
| Bluetooth Play | NO |
| Touch Screen | YES |
| Number of Stereo Ins | 2 |
| Local Line In | TRS (x4) |
| Number of Stereo S/PDIF Connectors | 1 |
| Number of Headphone Connectors | 1 |
| 19″ Rackmount | YES |
| Width in mm | 325 mm |
| Weight in kg | 5.3 kg |
