DCS-2000M
Digital Central Controller Unit with Voting & Camera tracking
Select by model :
The DCS-2000M is a digital conference system, that combines advanced digital, network, and audio technology to provide a more comprehensive solution for an efficient modern conference system. It can communicate with smart phone systems, central control systems, and video conferencing systems.
The DCS-2000M can be connected to a maximum of 256 conference units. And can be able to support microphone up to 1200 units by power extended machine. Built in USB port for recording high-fidelity output. Support 4 Full HD camera automatic tracking function and voting function.
DCS-2000 Series Supports multiple meeting for:
- Corporate meeting Rooms.
- Government meeting room & City Council Meeting.
- Education institutions.
- Courtrooms.
- Non-profit organizations.
VERIFICATION OF COMPLIANCE :
FEATURES
- Full-function Digital Conference System Controller.

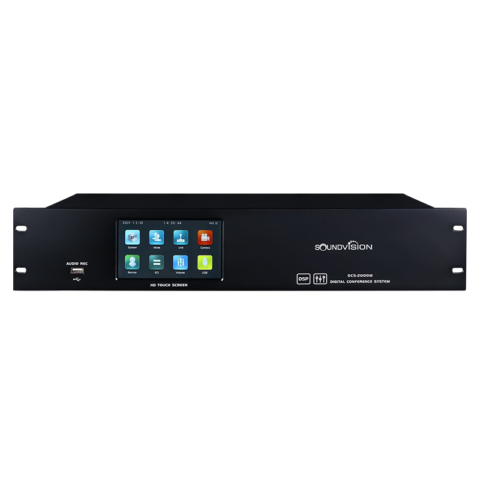

- 5 inch full-view IPS capacitive touch screen, intuitive display, and easy adjustment of system parameters.
- The microphone can open at the same time: 1,2,3,4,5,6,7,8 and 20 microphone units.
- High-performance switching power supply, long-distance transmission will not have any impact on sound quality.
- Anti-interference circuit design to eliminate all interference from smart phone signals.
- The DCS-2000M can be connected to a maximum of 256 conference units. And can be able to support microphone up to 1200 units by power extended machine.
- Built in USB port for recording high-fidelity output.
- Support 4 Full HD camera automatic tracking function: Equipped with “SONY VISCA, PELCOP, PELCO D” communication protocol cameras can realize automatic tracking function, can record the panorama of the venue and speakers.
- Efficient voting and sign-in function: If it is equipped with a chairman unit with a display screen, the voting function can be realized without a computer (“Yes/abstain/no”), and the voting result is displayed on the LCD screen of the conference unit.
- Full remote control, remote diagnosis, and remote upgrade: Networked collaborative management, the system controller can set the IP address, has a TCP/IP network interface, can be connected to a wireless router, and use computers, mobile phones, tablets, and other devices in the same LAN to operate and set the controller, support Windows systems.
- Use high-performance DSP processor to perform 32-band equalization and noise reduction on the audio to make the sound clear and thorough; effectively prevent howling.
- five operational microphone modes:
- FIFO mode : After reaching limit number (1-8) when open new delegate the first microphones will automatic close.
- LIMIT mode : Limit microphones (1-8) can open on the same time.
- FREE mode : Allows up to 20 delegate speech units to be turned on at the same time, and is not limited by the “Speak Number”
- APPLY mode : The all-delegate microphone unit can be open after only approved of the chairman.
- VOICE mode : The delegate microphone is activated when spoken into.
DIAGRAM
Specs
| Power Supply | AC 110 – 220V/50Hz |
| Max Power Consumption | 120W |
| Frequency response | 20Hz - 20kHz |
| Input impedance | LINE : 47KΩ DIN : 22KΩ |
| Output impedance | RECORD : 120Ω LINE : 100Ω |
| BALANCE : 120Ω UNBALANCE : 100Ω | |
| Signal to Noise Ratio | 97dBA |
| Total Harmonic Distortion Ratio | 0.04% |
| Operation temperature | -20°C ~ 50°C |
| Storage temperature | -10°C ~ 40°C |
| Color | Black |
| Dimensions (W x L x H) | 480 x 322 x 85 mm |
| Weight | 7.5 Kgs |
| Set | 19 inches racks |
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz - 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| - DGM-60 : 600mm (option) - DGM-70 : 700mm (option) | |
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz - 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |
| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 185*123*44 mm |
| Weight | 0.6 kg |
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz - 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| - DGM-60 : 600mm (option) - DGM-70 : 700mm (option) | |
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz - 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |
| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 185*123*44 mm |
| Weight | 0.6 kg |
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz - 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| - DGM-60 : 600mm (option) - DGM-70 : 700mm (option) | |
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz - 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |
| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 185*123*44 mm |
| Weight | 0.6 kg |
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz - 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| - DGM-60 : 600mm (option) - DGM-70 : 700mm (option) | |
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz - 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |
| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 185*123*44 mm |
| Weight | 0.6 kg |
