DCS-1000 Discussion Unit . Digital Conference Discussion Unit. Display 2.4-inch IPS TFT high-brightness the display content is clear, can display the unit parameters, date and time, speaking volume, monitoring volume, etc. Professional high-fidelity capacitor microphone, sensitive pickup, clear voice, bandwidth up to 20Hz – 20kHz.
DCS-1000 Series Supports multiple meeting for:
- Corporate meeting Rooms.
- Government meeting room & City Council Meeting.
- Education institutions.
- Courtrooms.
- Non-profit organizations.
VERIFICATION OF COMPLIANCE :
FEATURES
- Simple and elegant design.

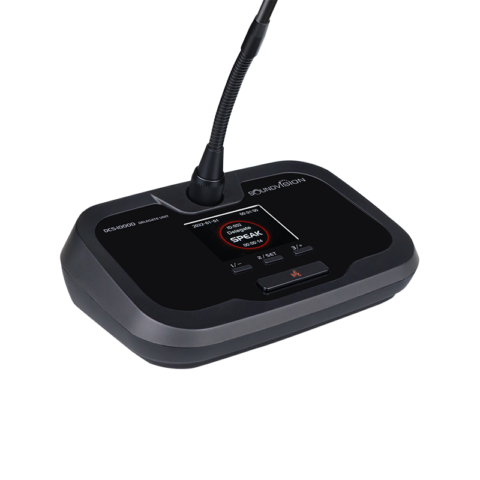

- Display 2.4-inch IPS TFT high-brightness the display content is clear, can display the unit parameters, date and time, speaking volume, monitoring volume, etc.
- Professional high-fidelity capacitor microphone, sensitive pickup, clear voice, bandwidth up to 20Hz – 20kHz
- Adopt anti-interference circuit design to prevent interference from electronic products such as smart phone.

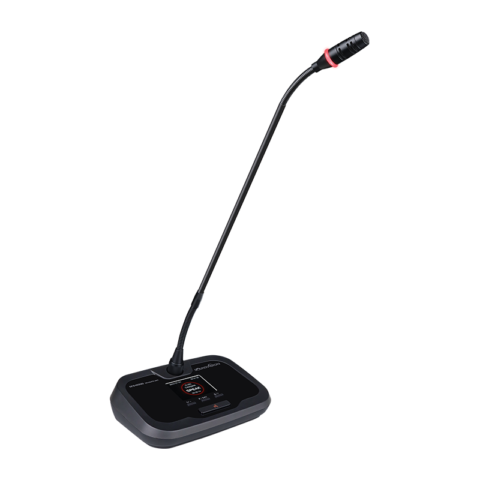

- The microphone head has a two-color speaking light ring, the light ring is always red when the unit speaks, and the light ring is always green when the unit requests to speak.
- Sensitive touch switch, the pattern is always green light when standby, the pattern is always red light after pressing Microphone with speaking timing function.
- The microphone unit has a headphone output port and a volume adjustment button, which can freely select the output mode and adjust its volume.
DIAGRAM
Specs
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz - 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| - DGM-60 : 600mm (option) - DGM-70 : 700mm (option) | |
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz - 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |

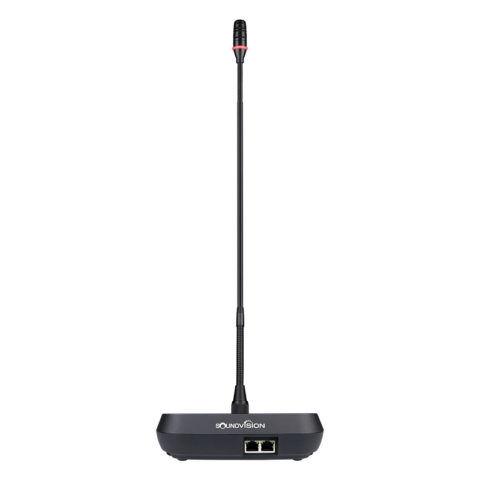

| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 184*124*52 mm |
| Weight | 0.6 kg |
| Power Supply | AC 110 – 220V/50Hz |
| Max Power Consumption | 100W |
| Frequency response | 20Hz - 20kHz |
| Input impedance | LINE : 47KΩ DIN : 22KΩ |
| Output impedance | RECORD : 120Ω LINE : 100Ω |
| BALANCE : 120Ω UNBALANCE : 100Ω | |
| Signal to Noise Ratio | > 96dBA |
| Total Harmonic Distortion Ratio | < 0.05% |
| Operation temperature | -20°C ~ 50°C |
| Storage temperature | -10°C ~ 40°C |
| Color | Black |
| Dimensions (W x L x H) | 480 x 322 x 85mm |
| Weight | 7 Kgs |
| Set | 19 inches racks |
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz - 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| - DGM-60 : 600mm (option) - DGM-70 : 700mm (option) | |
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz - 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |
| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 184*124*52 mm |
| Weight | 0.6 kg |
