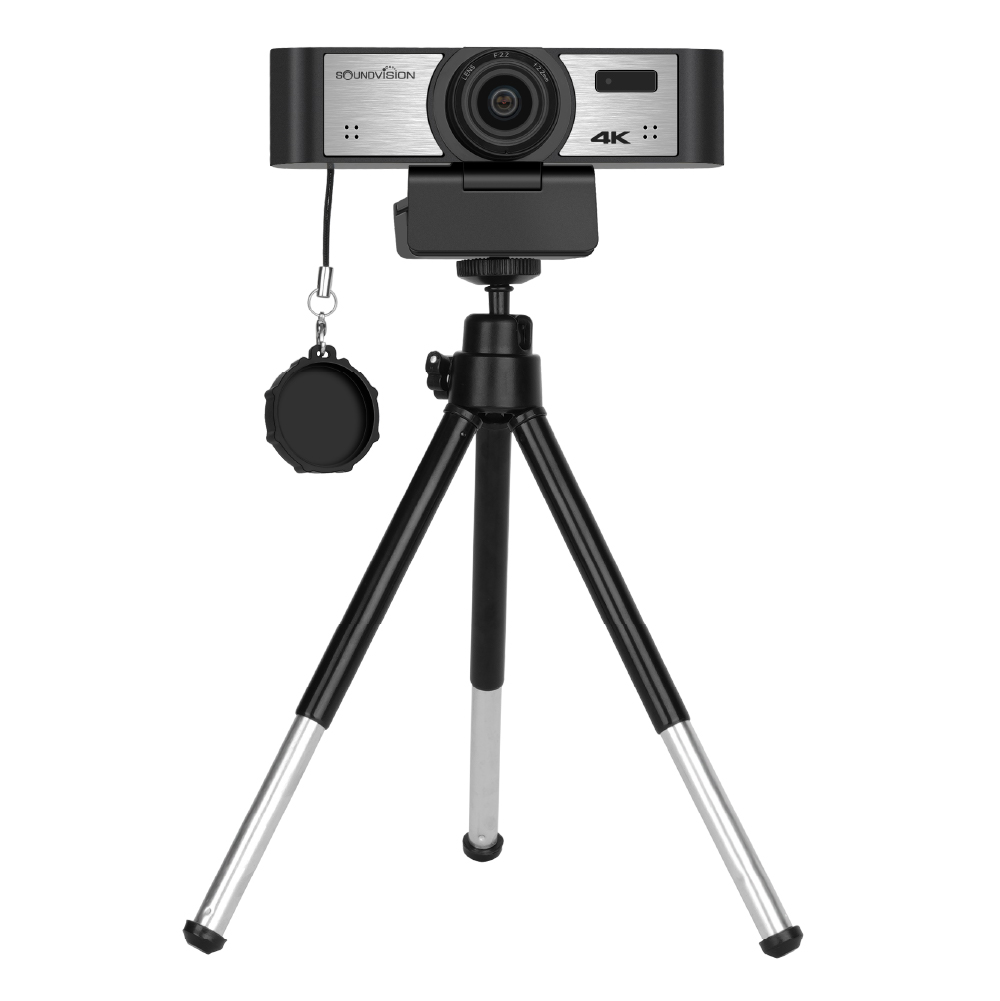

VC-4Kmini

4K Ultra HD USB Auto Framing, Auto Tracking, ePTZ Digital Zoom

AUTO‐FRAMING

Intelligent Zoom automatically includes everyone in the conversation, zooming in whenever meeting participants are present.

Number of people in the meeting room:

    SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.

    Applications:
    Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other

    VERIFICATION OF COMPLIANCE :CE-H36-W67ROSH-H36

    • Ultra-high definition and ultra-large field
      of view Equipped with a new generation of UHD CMOS image sensor, it has more accurate native resolution, richer color information, four times the effect of HD image, and shoots 4K video with full details. With a 110-degree ultra-large Angle and low distortion 4K lens, the panoramic view is unobtrusive.
    • USB 3.0
      Full-function USB 3.0 interface, power supply, video, audio in one, can also support 2 USB video signal source (optional) +1 channel audio source at the same time.
    • The wave speed forms a microphone array
      Built-in beamforming microphone array, unique noise suppression algorithm and automatic gain algorithm, pick up distance up to 6 meters, make your speech perfect presentation.
    • Ai ability
      Multi-layer convolutional neural network design, cutting-edge deep learning algorithms, enabling intelligent features of the camera, high quality analysis data can be accessed through open APIs.
    • Auto Framing
      The advanced deep learning algorithm is adopted to automatically adjust the size of the picture Angle according to the people in the detection field of vision, eliminating the need for manual adjustment of camera operation, bringing you a new intelligent experience.
    • Ai humanoid tracking
      Embedded NNE hardware unit, using deep learning technology, through the extraction of target features, no matter where the face is facing, can achieve smooth humanoid tracking, suitable for automatic speaker tracking and other application scenarios.
    • Convenient operation
      With exquisite infrared remote control and exclusive software, automatic box selection and humanoid tracking can be started with one button, and preset position, EPTZ, image parameters can be set at the same time.
    Camera
    Sensor 1/2.7'', CMOS, Effective Pixel: 8.29M
    Scanning Mode Progressive
    Lens Mount M12
    Lens Focus: f=2.2mm, FOV: 110°
    Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
    Shutter 1/30s ~ 1/10000s
    White Balance Auto, Indoor, Outdoor, One Push, Manual
    Camera bracket bracket with damper
    Privacy masking Support
    Digital Noise Reduction 2D&3D digital noise reduction
    Backlight Compensation Support
    Digital zoom 4X
    USB Feature
    Operate System Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher; macOS™ 10.10 or higher; Google™ Chromebook™ Version 29.0.1547.70 or higher; Linux (support UVC)
    Hardware Requirements 2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or more USB 2.0 port （4K requires USB 3.0）
    Color System / Compression H.264 / MJPEG /YUY2 /NV12
    Video Format 4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/ 25fps, 640x360p@30fps/25fps etc
    USB Video Communication UVC 1.1
    UAC Support
    UVC ePTZ Support (ePTZ)
    Input / Output Interface
    USB Interface 1xUSB 3.0: Type C
    IR remote Support
    General
    Input Voltage 5V (USB power supply)
    Current Input 600mA (MAX)
    Operating Temperature -10°C ~ 40°C
    Storage Temperature -40°C ~ 60°C
    Power Consumption 3.0W(MAX)
    Dimensions (W x D x H) 118 * 37.2 * 30.8 mm
    Net Weight 93g
    MTBF 30000h
