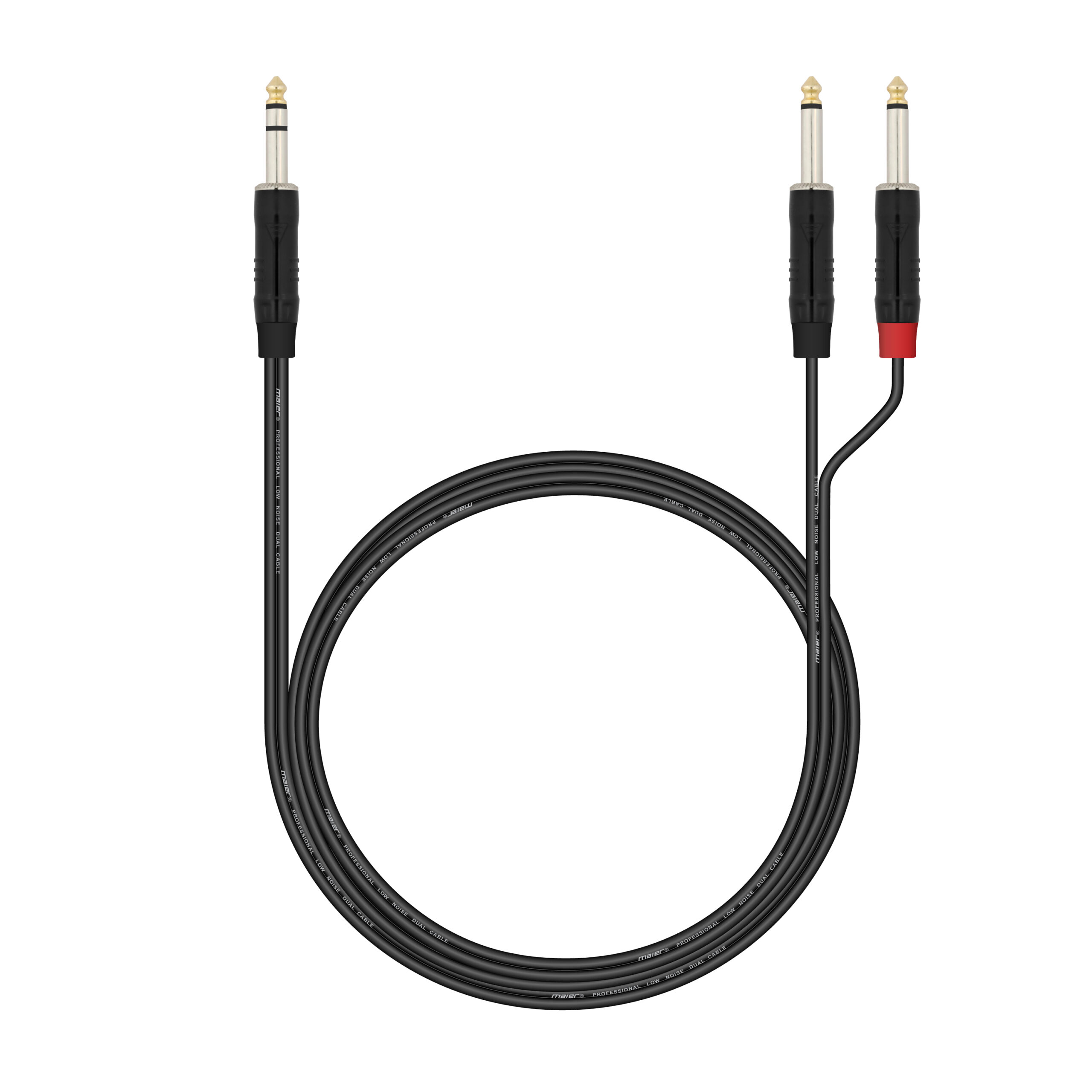

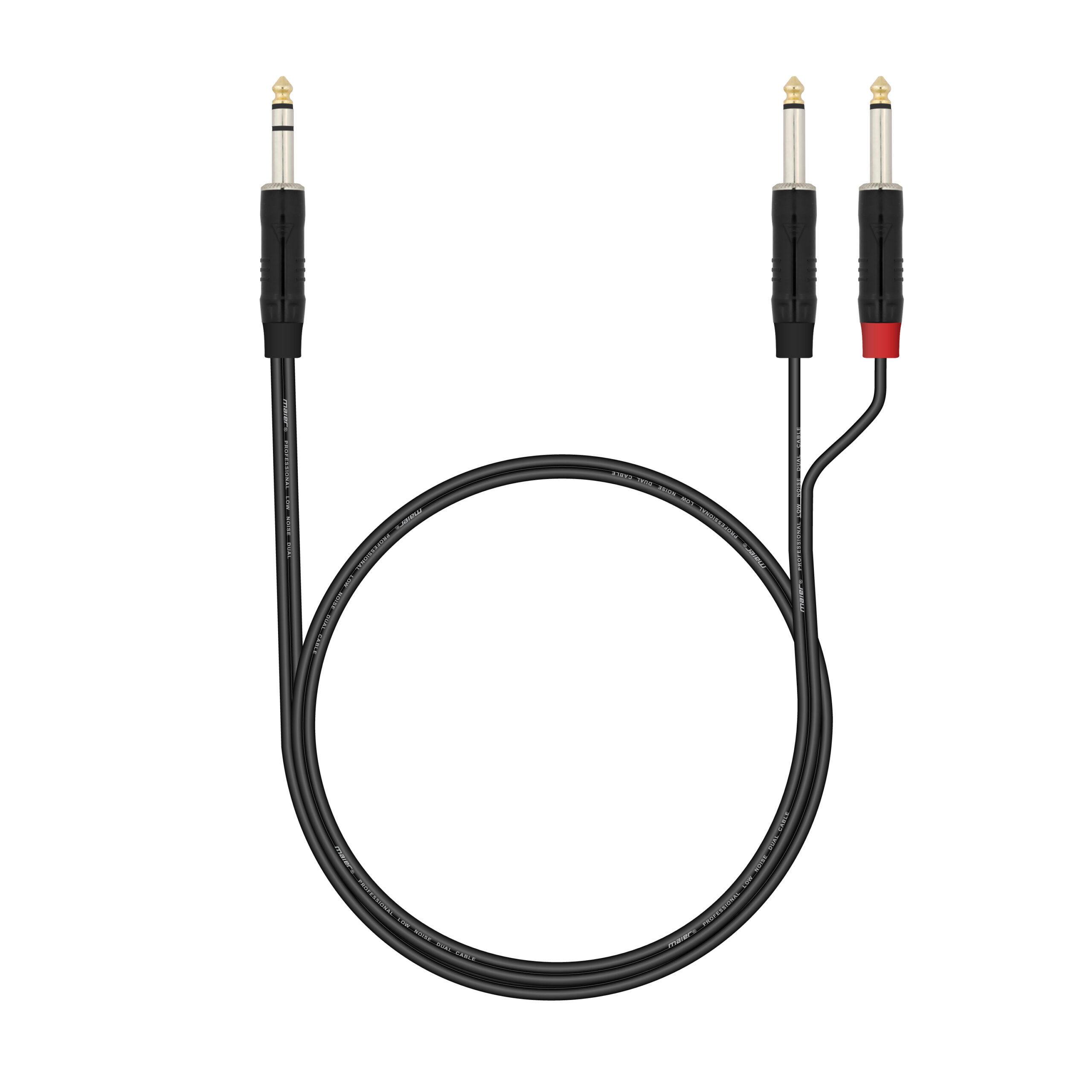

ไทยPSPM2 Series Audio Cable
- 6.35mm Jack male stereo to 2 x 6.35mm Jack male mono
- Cable conductor Φ4*8mm black
- Shell plating Black plated
- 2 lengths(meter): 1m, 2m
New
MAIER PSPM2 Series
Audio Cable
| Cable length | 1 M, 2 M |
|---|

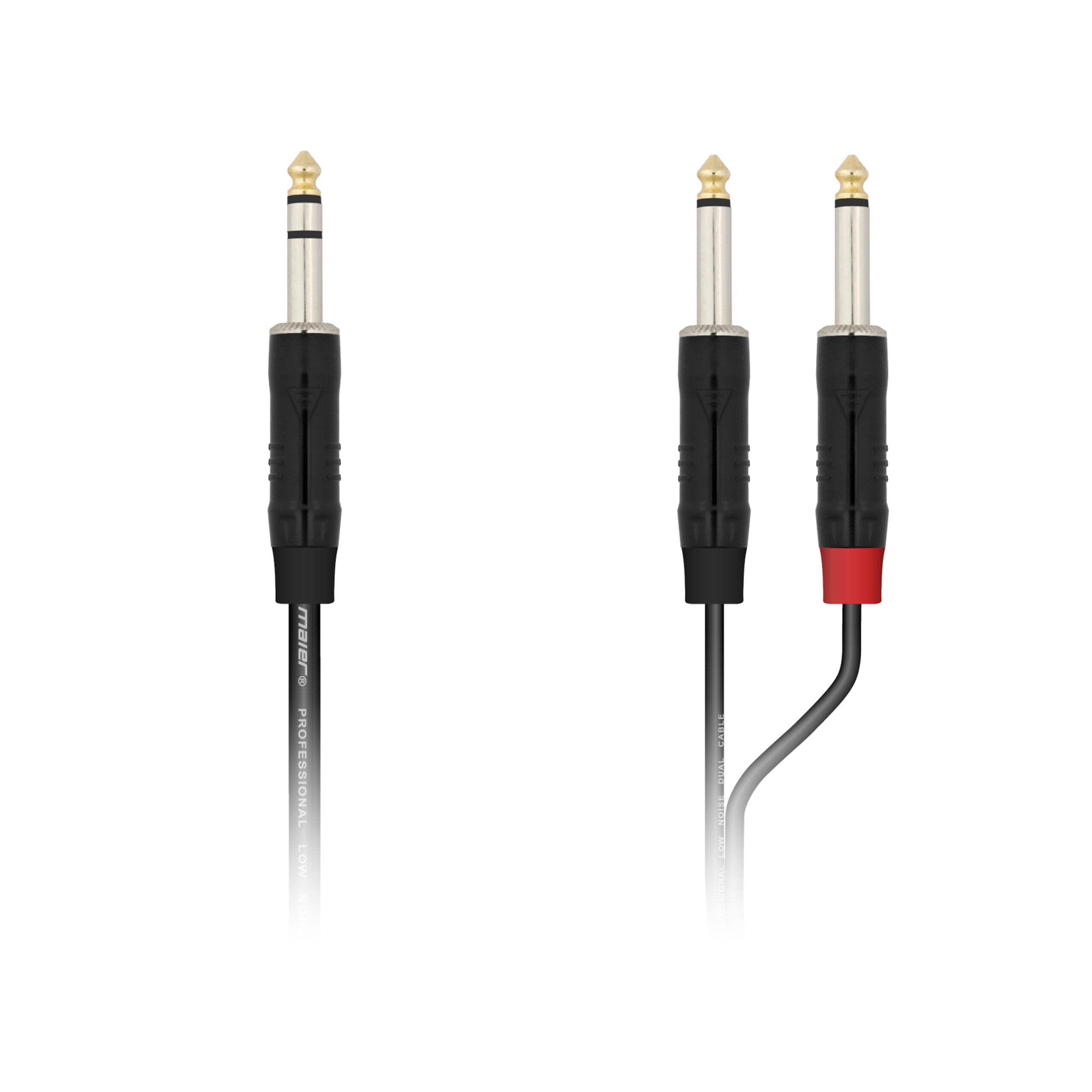

Phone Plugs 1/4” (6.35mm.) Stereo
- Unique zinc alloy housing design, increased friction, more in line with humanized concept.
- Housing is available in black or nickel coating, gold-plated tip contact, more resistant to oxidation.
- Elastic PVC sleeve provides excellent cable protection.
- Compatible with cables of diameter up to 7mm.
Phone Plugs 1/4” (6.35mm.)
- Unique zinc alloy housing design, increased friction, more in line with humanized concept.
- Housing is available in black or nickel coating, gold-plated tip contact, more resistant to oxidation.
- Elastic PVC sleeve provides excellent cable protection, available in two colors, which can be used to distinguish “left" and "right" channels.
- Compatible with cables of diameter up to 7mm.
| Product | PSPM2 Series | |
| Product type | Phone Plugs 1/4” (6.35mm.) Stereo | Phone Plugs 1/4” (6.35mm.) x 2 |
| Material | ||
| Shell | die-cast zinc alloy | die-cast zinc alloy |
| Contact material | brass | brass |
| Contact plating | nickel or gold plated | nickel or gold plated |
| Sleeve | flexible PVC | flexible PVC |
| Electrical & Mechanical | ||
| Contact resistance | according to matching connector | according to matching connector |
| Insulation resistance | >100MΩ | ≥ 1GΩ |
| Dielectric Strength | 300V dc | 500V dc |
| Life time | >1000 times | >1000 times |

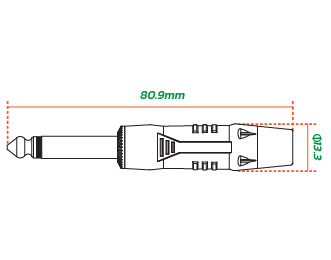

| Dimension |  |
 |
Verification of compliance : RoHS
