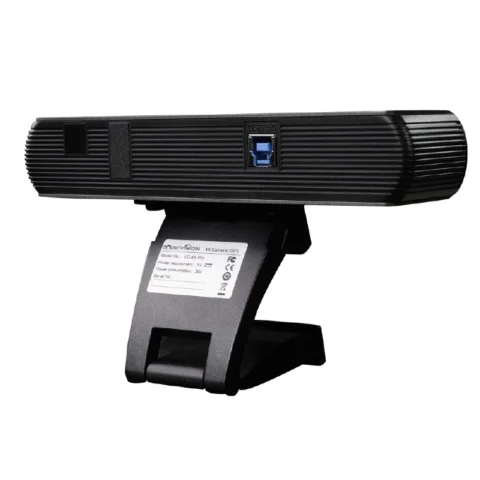

VC-4K Pro (120°)

4K Ultra HD USB Auto Framing, Auto Tracking, ePTZ Digital Zoo

หมวดหมู่: กล้องวิดีโอคอนเฟอเรนซ์

SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.

Applications:
Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other

VERIFICATION OF COMPLIANCE :

คุณสมบัติ

Ultra 4K HD
Support 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and down compatible with 1080p, 720p.,supporting 8X digital zoom function.
USB 3.0
Full functional USB, 3.0 connection, power supply, video, and audio all in one and support 2 streaming USB video signal and one audio source.
Light illumination
Star-level ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise in the case of image noise, while the application of 2D and 3D noise reduction algorithm, significantly reducing the image noise, even under low light conditions, keep still the picture Clean and clear, the image signal to noise ratio up to 55dB or more.
Ai Feature
Ai smart Auto framing
Ultra-Wide-Angle Lens
Non-distortion lens, Ultra-wide view angle up to 120°, small lens with big view, supporting EPTZ.
WDR
Support WDR, can handle different lighting environment.
Built in Microphone
Built in microphone array, omnidirectional pickup, pickup distance up to 12 meters, noise suppressing algorithm with excellent sound.
Easy Installation
Equipped with damping rotary shaft bracket, to meet the market almost 100% of the display, easy to install, stable and reliable.

ข้อมูลจำเพาะ

VC-4K Pro (120°)

Camera
Sensor	1/2.5'', CMOS, Effective Pixel: 8.51M
Scanning Mode	Progressive
Lens Mount	M12
Lens	Focus: f=2.8mm, FOV: 120°
Minimal Illumination	0.05 Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual
Camera bracket	Bracket with damper
Digital Noise Reduction	2D, 3D digital noise reduction
Backlight Compensation	Support
USB Feature
Operate System	Windows® 7 (1080P and under only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version 29.0.1547.70 or higher Linux
Hardware Requirement	2.4 GHz Intel® Core 2 Duo processor or higher;2 GB RAM or higher USB 2.0 interface
Color space / compression	H.265 / H.264 / MJPEG
Video resolution	4k@30fps/25fps, 1080p@60fps/50fps/ 30fps/25fps, 720p@60fps/50fps/30fps/ 25fps ,960x540p@60fps/50fps/30fps/25fps, 640x360p@60fps/50fps/30fps/25fps
USB Video Communication Protocol	UVC 1.0 ~ UVC 1.5
UVC PTZ	Support (EPTZ)
Input / Output Interface
USB Interface	1 x USB 3.0: Type B, female
General
Input Voltage	5V (USB power supply)
Current Consumption	600mA
Operating Temperature	-10°C ~ 40°C
Storage Temperature	-40°C ~ 60°C
Power Consumption	3W
Dimensions (W x D x H)	194 * 34 * 42 mm
Net Weight	0.5kg
