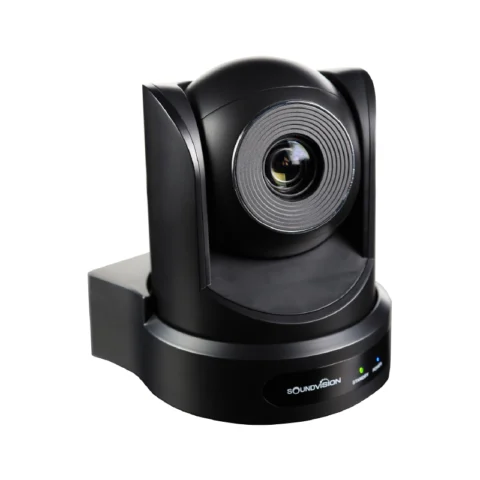

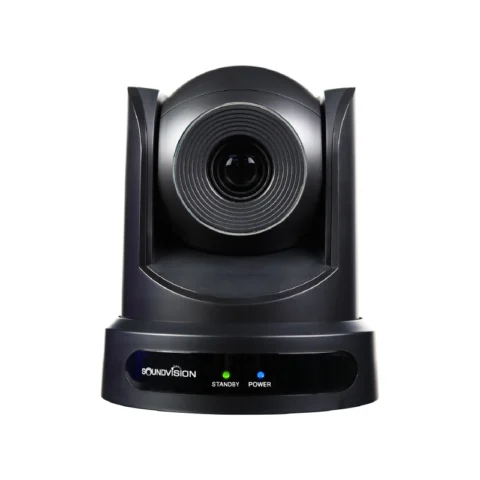

VC-100HU

กล้องวิดีโอ PTZ ความละเอียด HD ดิจิตอล 10 เท่า และซูมออปติคอล 16 เท่า

หมวดหมู่: กล้องวิดีโอคอนเฟอเรนซ์

SOUNDVISION VC-Series conference camera offers perfect functions, superior performance. The features include advanced processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. Working stably and reliably easy and convenient to install and maintain.

Applications:
Camera widely used in business Video conferencing, meeting, negotiations, remote recruitment, online education, remote training and other

VERIFICATION OF COMPLIANCE :

คุณสมบัติ

1080P full HD
High quality HD CMOS sensor with 2.07 million effective pixels can achieve high quality image with maximum 1920×1080 resolution.
Full-function USB interface
USB2.0 interface, support coding output.
Low light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can keep still clean and clear.
H.264 Slice
The output h.264-bit stream supports Slice and SVC encoding mode and is suitable for high-end USB conference video applications.

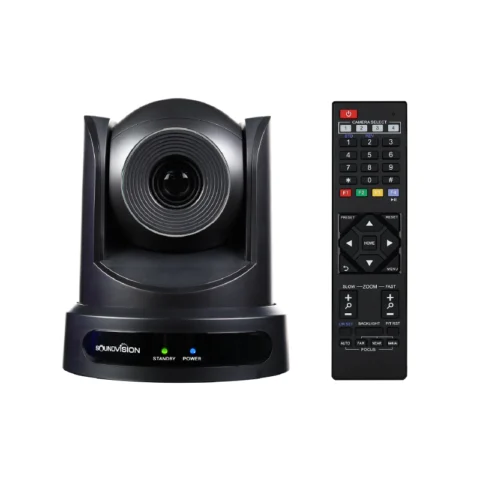

Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.
Double stream
Support two streams output at the same time (YUY2, MJPEG, H.264), to reduce the host codec pressure.

ข้อมูลจำเพาะ

VC-100HU

Camera
Video System	1080P, 720P, 540P, 480P, 360P, 240P etc. according to different resolution for different color space/compression modes.
Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lens	10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
Minimal Illumination	0.5Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K _1, 6500K _2, 6500K _3, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D & 3D Digital Noise Reduction
Video S/N	≥ 55dB
Horizontal Angle of View	58.5° ~ 6.5°
Vertical Angle of View	35.1° ~ 3.6°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-30° ~ +90°
Pan Speed Range	2.7° ~ 47°/s
Tilt Speed Range	3.4° ~ 30°/s
H & V Flip	Support
Image Freeze	Support
Number of Preset	255
Preset Accuracy	0.1°
USB Feature
Operate System	Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression	YUY2 / MJPEG / H.264
Video Format	H.264 AVC: max to 1080P@30fps MJPEG: max to 1080P@30fps
USB Video Communication Protocol	UVC 1.1
UVC PTZ	Support
Input / Output Interface
USB Interface	1 x USB2.0: Type B female jack
Communication Interface	1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V) / USB B type (DC IN 5V)
General
Input Voltage	DC 12V
Current Consumption	0.5A（ Max）
Operating Temperature	-10 ~ 40°C
Storage Temperature	-40 ~ 60°C
Power Consumption	6W（ Max）
MTBF	>30000h
Dimensions (W x D x H)	141.3 * 153 * 163.6 mm
Net Weight	1.153Kg
