ไทย| Size | 65", 75", 86" |
|---|
New

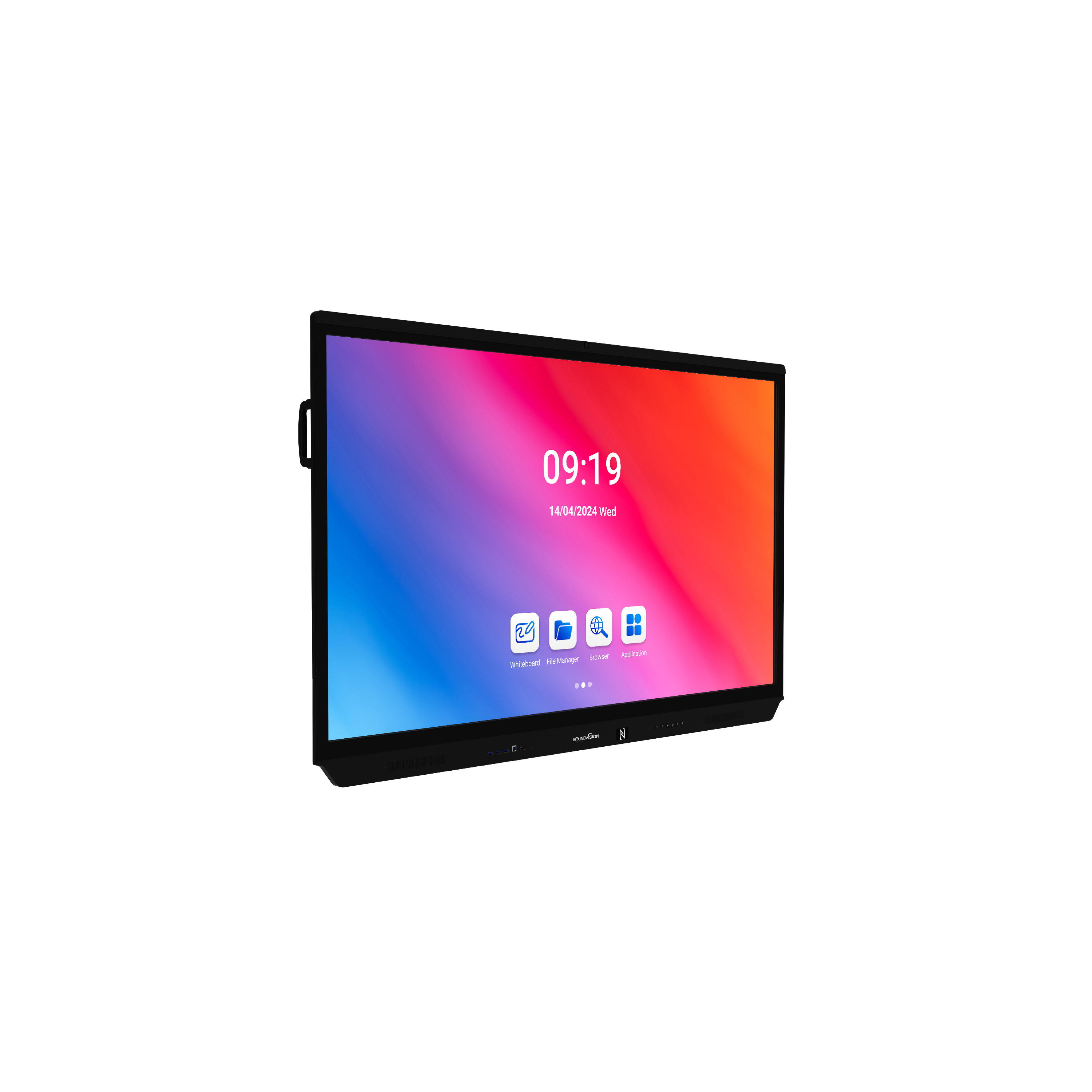

CT Pro
4K Capacitive Smart Touch Screen
- A capacitive smart touchscreen that like with iPad, smartphone resolution, resolution with 4K and 16:9 aspect ratio, available in sizes from 65inch, 75inch, 86inch.
- Android 13 operating system with powerful CPU Quad core A73 + Quad core A53 Ram 8GB, Rom 128GB Built-in camera 48 MP + 8 microphone array OPS port for Windows operating system and wireless screen sharing can support
- There is an NFC system to control the screen freely with NFC Card and Wi-Fi 6 system that can transmit and receive the network system well.
- Supports up to 20 touch points at the same time. Ready to download and install various applications through Google Play Store conveniently and easily used.
- Perfect for classrooms, conference room, training room or even a multipurpose room can be used.
| DISPLAY | |||
| Screen Size | 65" | 75" | 86" |
| Bonding Technology | Optical Bonding | ||
| Aspect Ratio | 16:09 | ||
| Max Visual Area (H/V) (mm) | 1428.48×803.52 | 1649.664×927.936 | 1895.04x1065.96 |
| Resolution (H/V) | 4K UHD 3840×2160 | ||
| Display Color / Color Gamut | 1.07B (10Bit) / 72%NTSC | ||
| Brightness(cd/m2) | 350 | ||
| Contrast Ratio(Typ) | 1300:1/4000:1/5000:1 | ||
| Viewing Angles (H/V) | 178° | ||
| Refresh Rate | 60Hz | ||
| Response Time | 8ms | ||
| Back Light | DLED | ||
| Life | ≥30000 hours | ||
| Operation Time | 16/7 | ||
| TOUCH | |||
| Touch Technology | Capacitive | ||
| Supported Systems | Windows10/8/7/XP/Android/Linux/Mac OS X/Chrome | ||
| Interactivity | Simultaneous Pen and Touch | ||
| Glass | Mosh Hardness Scale 7H + Anti-Glare | ||
| Response Time | 8ms | ||
| Min. Object Size | 2mm | ||
| Touch Accuracy | ±1mm | ||
| ANDROID OS | |||
| System Version | Android 13.0 | ||
| Solution | Amlogic A311D2 | ||
| CPU/GPU | 4-Core A73 & 4-Core A53 / Arm Mali-G52 MP8(8EE) | ||
| RAM/ROM | 8 GB DDR4 / 128GB EMMC | ||
| Bluetooth | Version 5.2, 2.4GHz, 0~10m Working Distance | ||
| Wi-Fi | Version 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz, 0~10m Working Distance, Wi-Fi 6.0 | ||
| CONNECTIVITY | |||
| Front Interfaces | USB 3.0 × 3, HDMI IN × 1, Touch USB × 1, USB Type-C × 1(full-featured), Power Button / Light Sensor/IR Remote Receiver × 1 | ||
| Rear Interfaces | Rs232 × 1, USB-C (3.0) × 1, RJ45 IN × 1,USB touch (DP) × 1, DP (1.4) × 1, HDMI IN (2.0) × 2, USB touch (HDMI) × 1, MIC IN × 1, USB2.0 (Android only) × 2, USB3.0 (Public) × 2, RJ45 OUT × 1, HDMI OUT × 1, Earphone/Line-out × 1, Digital coax out × 1 | ||
| GENARAL | |||
| Camera & Mic | 48M Pixel Camera, 8 Array Microphones | ||
| Speaker | 2×16W+ Subwoofer 20W | ||
| Max. Power Consumption | 180W | 280W | 480W |
| Voltage & Standby Power Consumption | 100-240V, 50/60Hz; 4A; ≤0.5W | ||
| Environmental | Working Temperature 0°C~40°C, Working Humidity 10%~90%RH | ||
| Product Dimensions (mm) | 1483×943×82 | 1705×1069×82 | 1951×1211×83 |
| Packaging Dimensions (mm) | 1630×220×1050 | 1860×220×1160 | 2120×220×1325 |
| Net Weight (kgs) | 35 | 47.2/47 | 61.5/61.3 |
| Gross Weight (kgs) | 61 / 45 | 61.4 / 60.7 | 77.6 /76.6 |
| VESA Wall Mount (mm) | 500×400 | 600×400 | 800×400 |
| Wall Screw | M8×20mm | ||
| Accessories | Power Cable ×1, Stylus Pen×2, Wifi Module×1, Wall Mount Bracket×1, Remote Control×1, User Manual x1 HDMI Cable×1, Touch Cable×1, NFC Card x1 | ||
